Repair Procedures: Installation

Install in the reverse order of removal.
NOTE:
- The existing valve body cover gasket (A) must be replaced with new one. (Do not reuse it.)
- Perform the procedures below after replacing the solenoid valve.
  1. Refill the automatic transaxle with fluid. "Refer to FLUID "
  2. Reset the automatic transaxle adaptive values using the GDS.

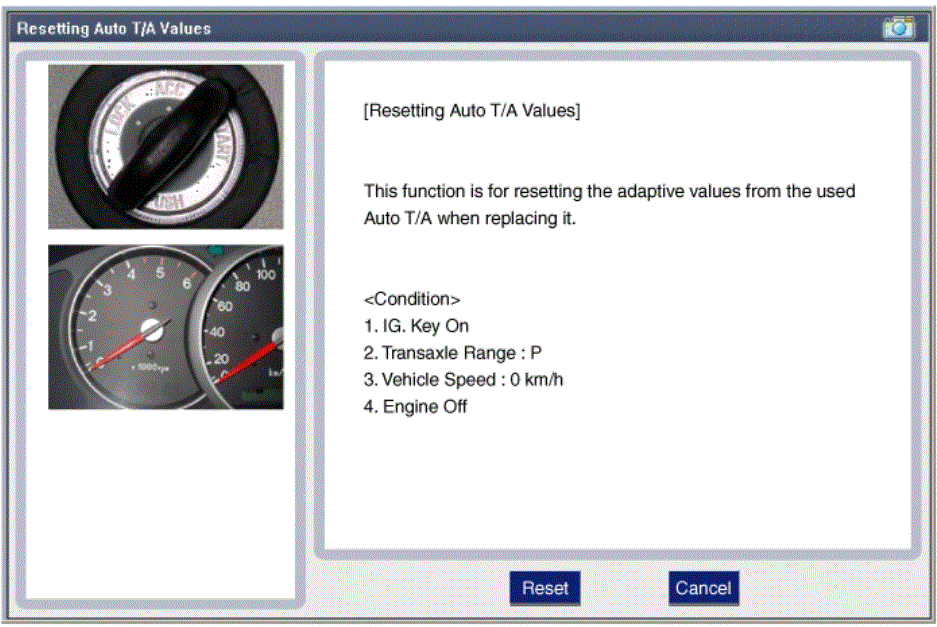

    Fig 2: Resetting Auto T/A Value
    Courtesy of KIA MOTORS AMERICA, INC.
  3. Perform the TCM adaptive values learning procedure "Refer to REPAIR PROCEDURES "
  4. Confirm that there is no fluid leakage on connections after repairing.
