Adjusting method for T/M control cable

WARNING: This page is about a different variant/trim than selected.
  1. Set room side shift lever and T/M side manual control lever to "N" position.
  2. Connect room side shift lever and shift cable.
  3. Push cable to "F" direction shown to eliminate FREE PLAY. (See Fig 1)
  4. Tighten adjusting nut (A).

    Tightening torque:

    7.8 ~ 11.8 N.m (0.8 ~ 1.2 kgf.m, 5.8~8.7 lb-ft)

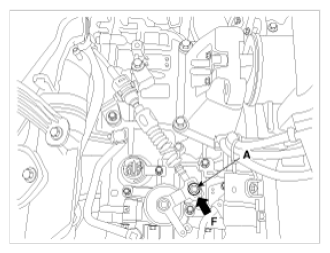

    Fig 1: Pushing Cable To F Direction
    G09764681Courtesy of KIA MOTORS AMERICA, INC.
  5. After adjusting according check to be sure that this part operates surely at each range of T/M side corresponding to each position of shift lever.
