Repair Procedures: Removal

  1. Disconnect the negative (-) battery terminal.
  2. Remove the power seat control switch connectors (A).

    (Refer to "POWER SEAT CONTROL SWITCH ")

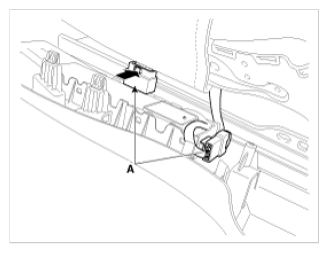

    Fig 1: Power Seat Control Switch Connectors
    G09767006Courtesy of KIA MOTORS AMERICA, INC.
  3. Remove the power seat switch (A) after disengaging the hook holder.

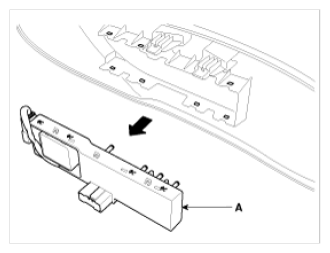

    Fig 2: Removing Power Seat Switch
    G09767007Courtesy of KIA MOTORS AMERICA, INC.
