Check ECTS Performance

IG KEY "OFF".
Disconnect ECTS connector.
Measure resistance between Pin No. 4(Signal) terminal and Pin No. 3(Ground) terminal of the ECTS. (Component Side)
Specification: Approx. 1.9 kΩ at 25°C(77 °F) & 0.505 kΩ at 65°C(149 °F)

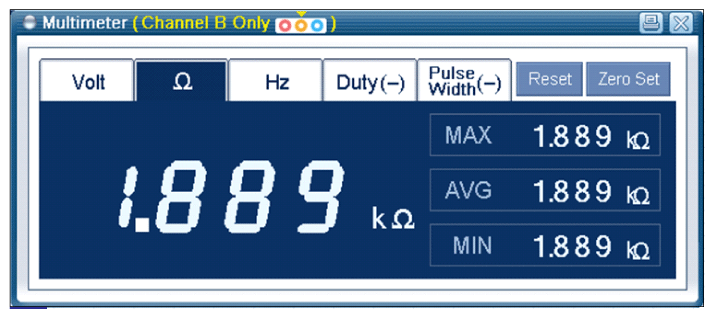

Fig 1: Screen Display - Resistance Of ECTS At 25°C (77 °F)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 2: Screen Display - Resistance Of ECTS At 65°C (149 °F)
Courtesy of KIA MOTORS AMERICA, INC.
Is the measured value within specification?
YES
- Go to "Verification Of Vehicle Repair " procedure.
NO
- Carefully re-do this troubleshooting guide steps.
- If no problems were found with the circuits or connectors, replace the ECTS and go to "Verification Of Vehicle Repair " procedure.
