Component Inspection

■ Perform VIS(bank 1) Actuation Test

1. Connect GDS to Data Link Connector(DLC).
2. IG KEY "ON" & ENG "OFF".
3. Perform "Actuation Test" for "Variable Intake Manifold #1".

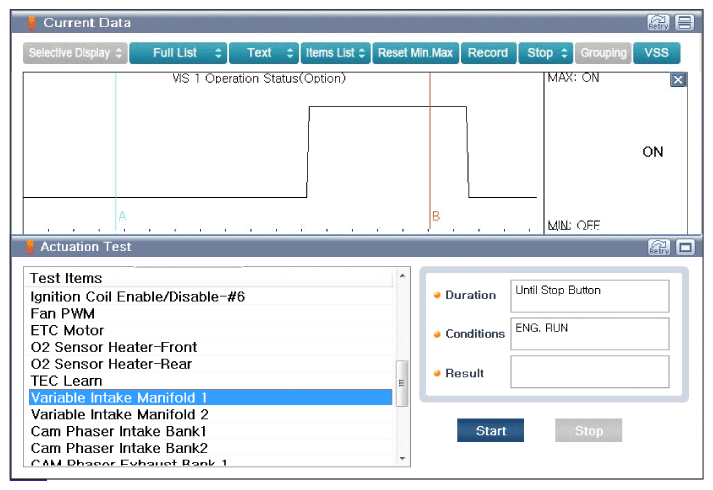

   Fig 1: Screen Display - Variable Intake Manifold 1 In Actuation Test

   Courtesy of KIA MOTORS AMERICA, INC.

■ Inspect VIS #1

1. IG Key "OFF".
2. Disconnect VIS #1 connector.
3. Measure resistance between power and control terminal of the VIS #1. (Component Side).

   Specification:  Approx. 30 ~ 35Ω [22°C(71.6 °F)]

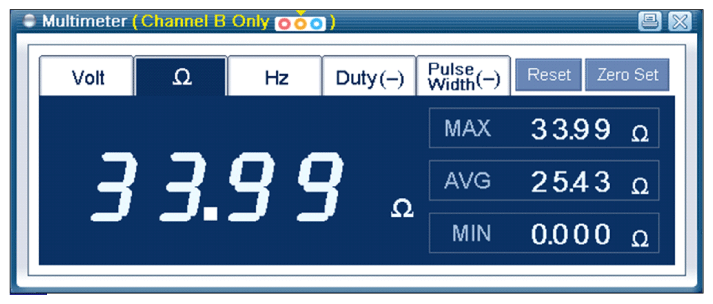

   Fig 2: Screen Display - Resistance Of VIS #1

   Courtesy of KIA MOTORS AMERICA, INC.

■ Confirm Part Inspection

1. Does the VIS #1 operate properly? (Check variation)

   YES

   • Go to "Verification Of Vehicle Repair " procedure.

   NO

   • Carefully re-do this troubleshooting guide steps.
   • If the diagnostics have been performed correctly with no failure found, replace the VIS #1 and then go to "Verification Of Vehicle Repair " procedure.
