Components And Components Location: Components

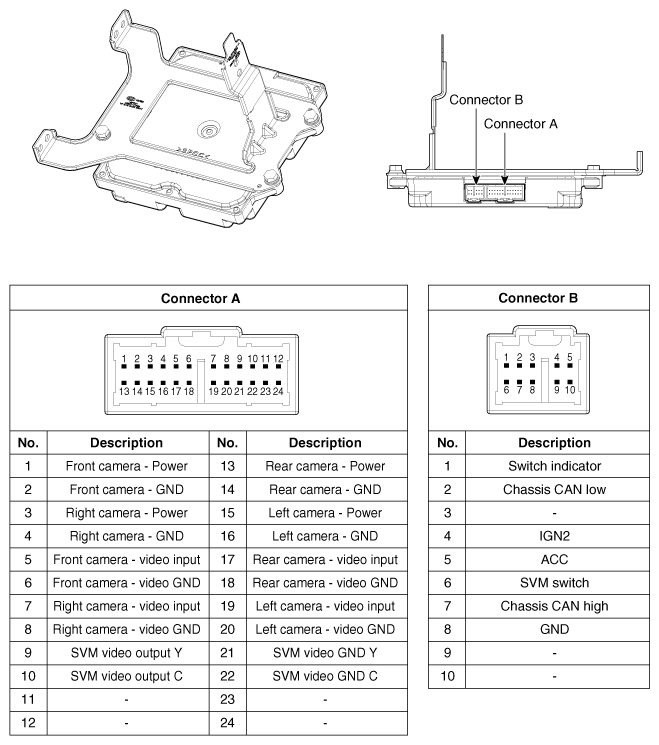

Fig 1: Surround View Monitoring Unit Connectors

G10651718

Courtesy of KIA MOTORS AMERICA, INC.
