Signal Waveform & Data

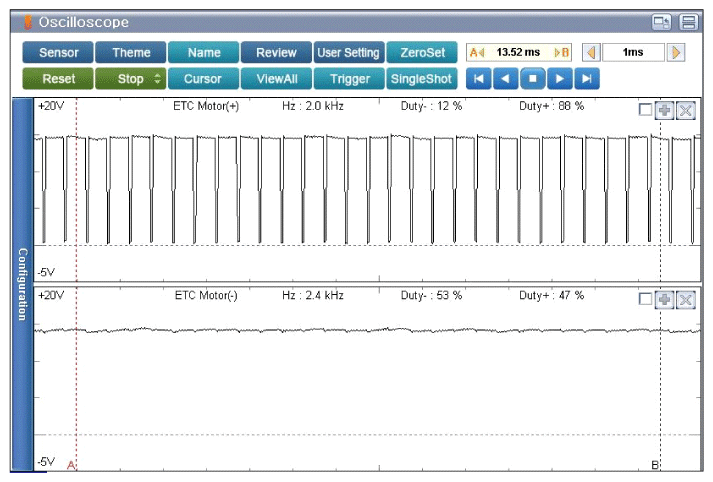

Fig 1: Screen Display - Signal Waveform In Current Data At Engine Idle After Warm Up
G10646819Courtesy of KIA MOTORS AMERICA, INC.

ETC Moter(+) → Duty(+) Approx. 88%

Duty(-) Approx. 12%

ETC Moter(-) → Not in Control
