System Inspection

■ ETC TEST

1. Connect GDS to Data Link Cable (DLC).
2. IG "ON" & ENG "OFF".
3. Select the "Vehicle S/W Management" about related DTC with GDS.

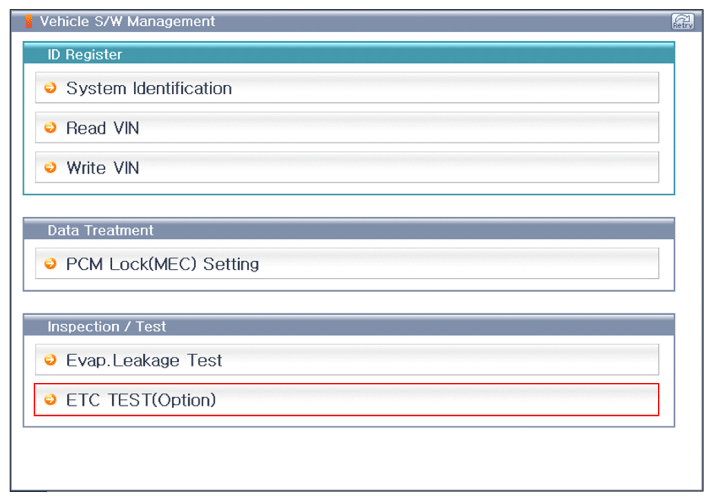

   Fig 1: Screen Display - ETC Test (Option)

   Courtesy of KIA MOTORS AMERICA, INC.

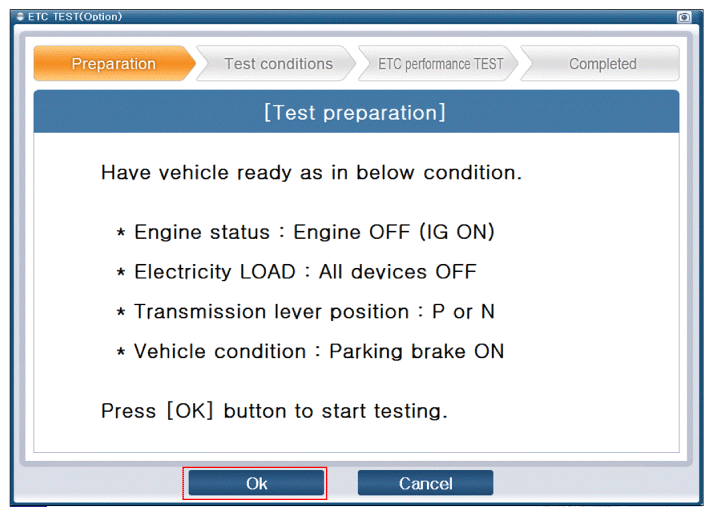

   Fig 2: Screen Display - ETC Test (Preparation)

   Courtesy of KIA MOTORS AMERICA, INC.

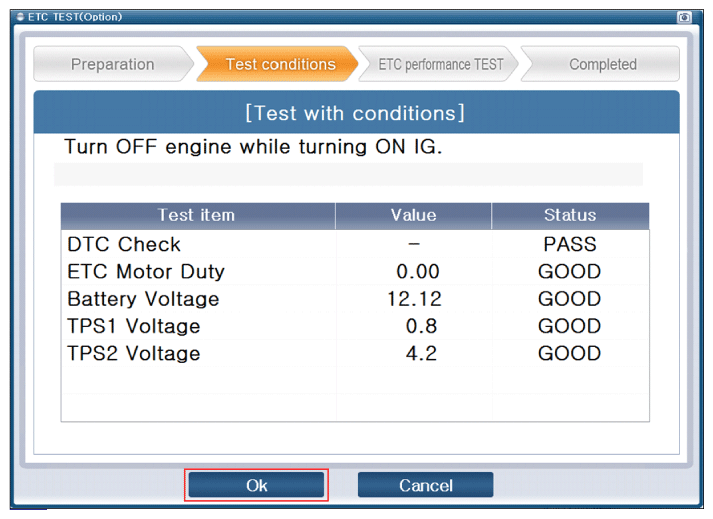

   Fig 3: Screen Display - ETC Test (Conditions)

   Courtesy of KIA MOTORS AMERICA, INC.

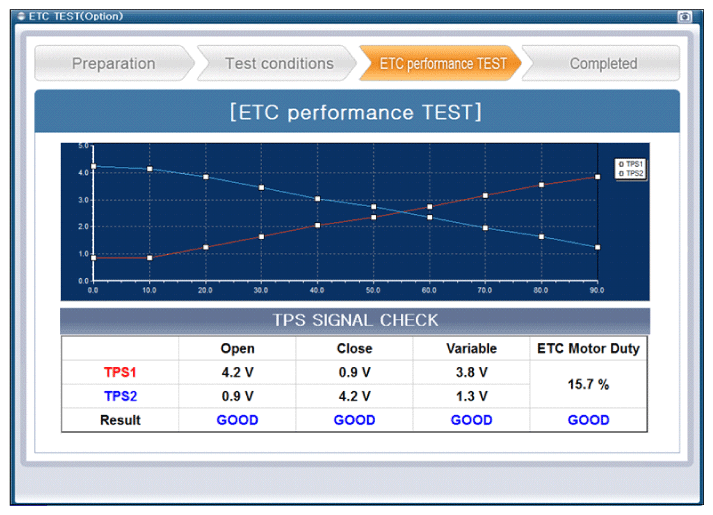

   Fig 4: Screen Display - ETC Test (Performance)

   Courtesy of KIA MOTORS AMERICA, INC.

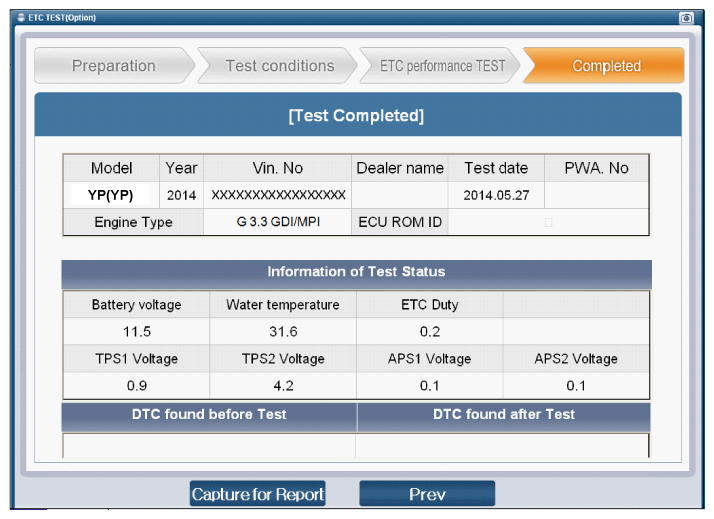

   Fig 5: Screen Display - ETC Test (Completed)

   Courtesy of KIA MOTORS AMERICA, INC.
4. When the "ETC TEST(Option)" has been finished perfectly, go to "Verification Of Vehicle Repair " procedure.
