Etc Test

  1. Connect GDS to Data Link Cable (DLC).
  2. IG "ON" & ENG "OFF".
  3. Select the "Vehicle S/W Management" about related DTC with GDS.

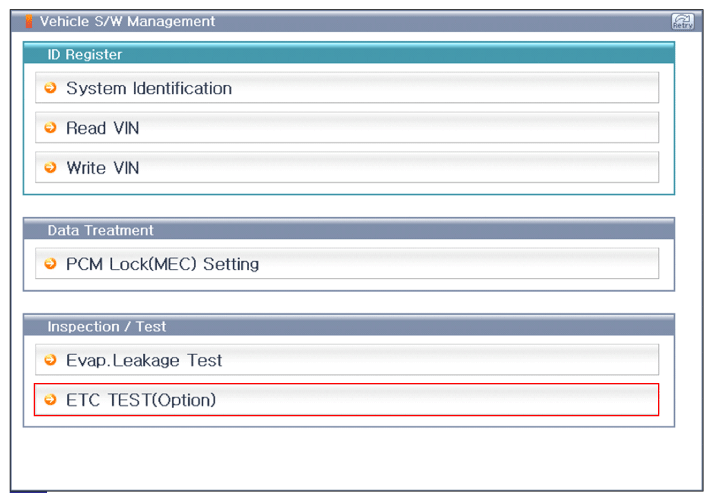

    Fig 1: Screen Display - ETC Test (Option)
    G10645977Courtesy of KIA MOTORS AMERICA, INC.

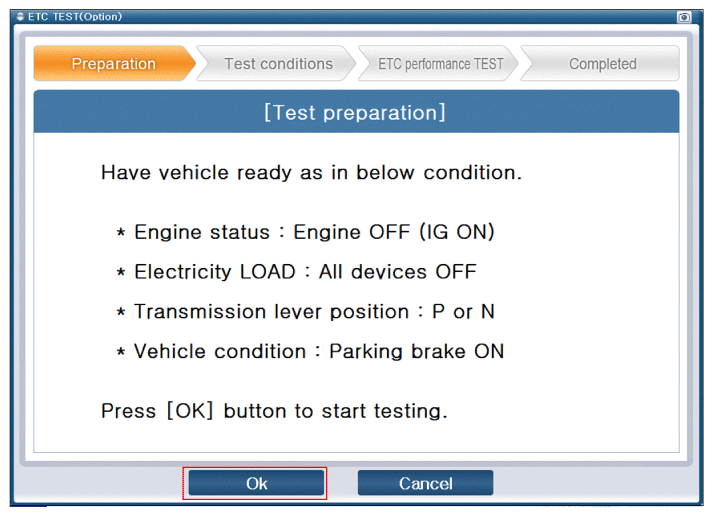

    Fig 2: Screen Display - ETC Test (Preparation)
    G10645978Courtesy of KIA MOTORS AMERICA, INC.

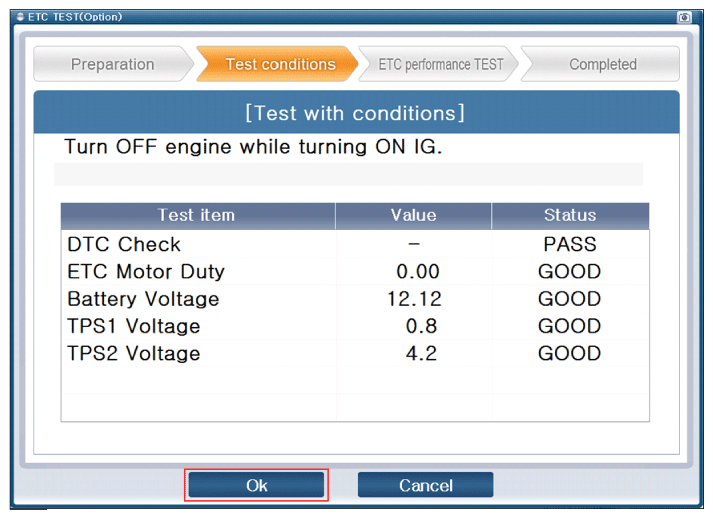

    Fig 3: Screen Display - ETC Test (Conditions)
    G10645979Courtesy of KIA MOTORS AMERICA, INC.

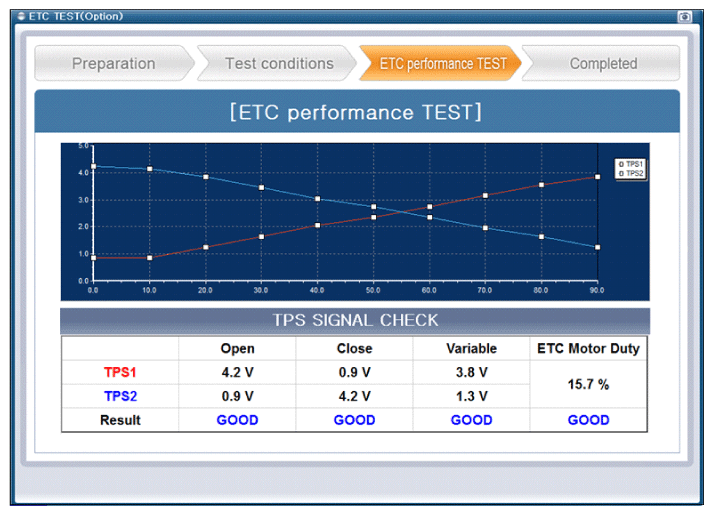

    Fig 4: Screen Display - ETC Test (Performance)
    G10645980Courtesy of KIA MOTORS AMERICA, INC.

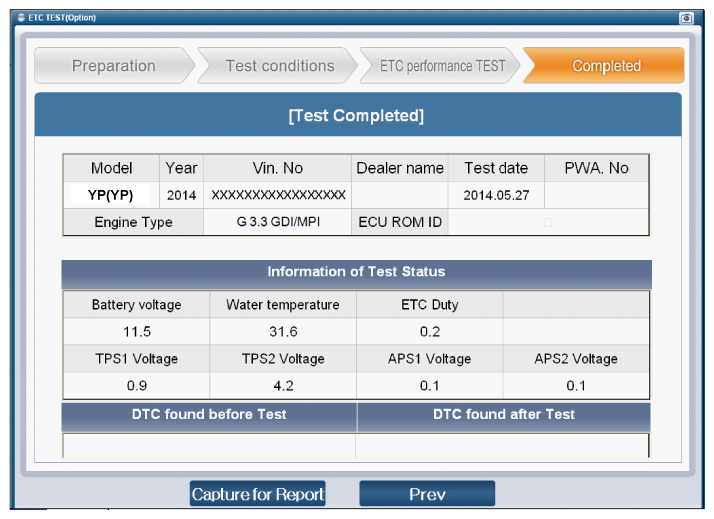

    Fig 5: Screen Display - ETC Test (Completed)
    G10645981Courtesy of KIA MOTORS AMERICA, INC.
  4. When the "ETC TEST(Option)" has been finished perfectly, go to "Verification Of Vehicle Repair " procedure.
