Signal Waveform & Data

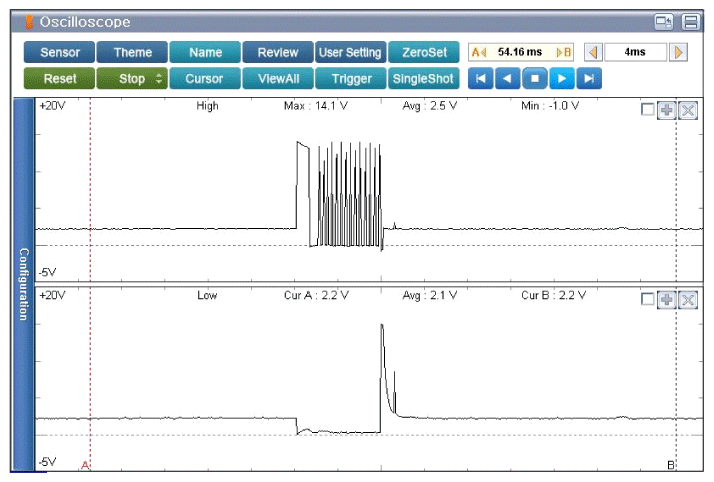

Fig 1: Screen Display - Signal Waveform Of FPR At Engine Idle
G10645864Courtesy of KIA MOTORS AMERICA, INC.

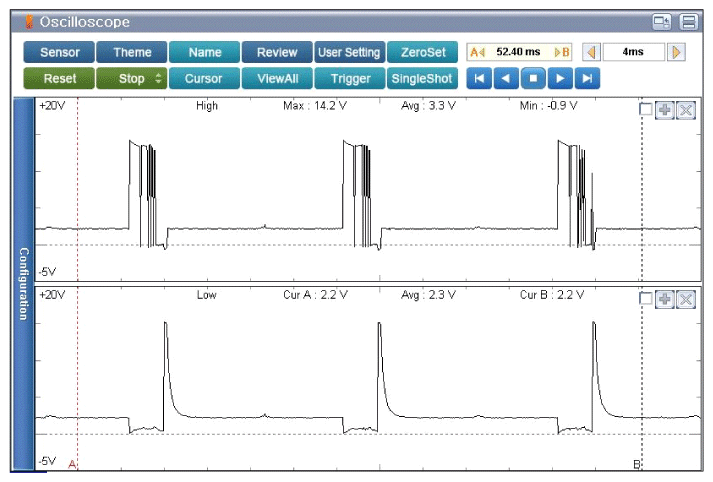

Fig 2: Screen Display - Signal Waveform Of FPR At Approx 2000rpm
G10645865Courtesy of KIA MOTORS AMERICA, INC.
