Signal Waveform & Data

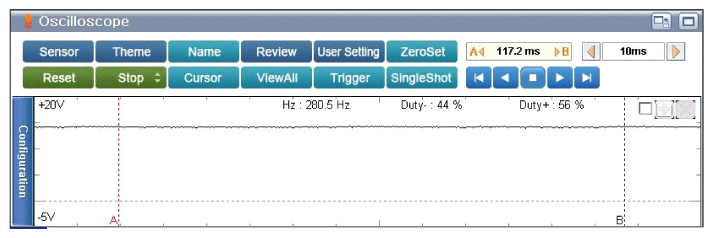

Fig 1: Screen Display - Signal Waveform Of OCV At Engine Idle
G10645805Courtesy of KIA MOTORS AMERICA, INC.

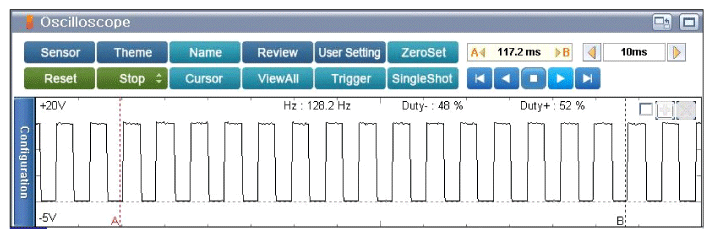

Fig 2: Screen Display - Signal Waveform Of OCV At Approx (2000rpm)
G10645806Courtesy of KIA MOTORS AMERICA, INC.
