BSD Unit Alignment

  1. Rear bumper accident vehicles and vehicles that replaced BSD units must perform BSD unit alignment using GDS/GDS.
  2. Select "BSD Radar Calibration" procedure in BSD system.

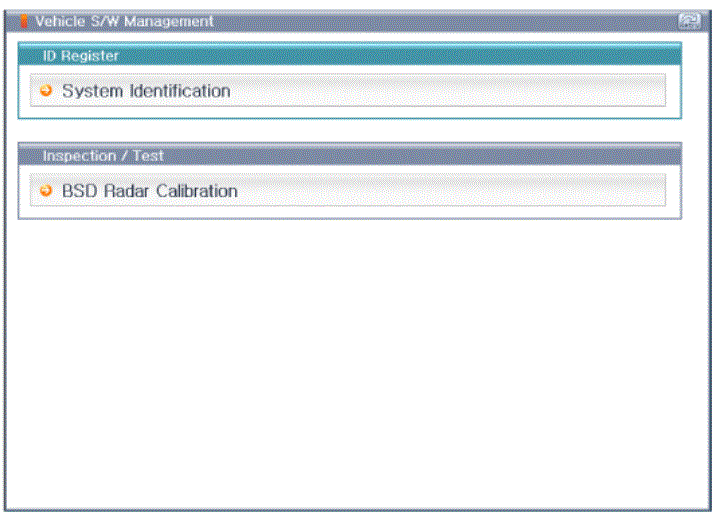

    Fig 1: GDS Vehicle S/W Management
    G00570500Courtesy of KIA MOTORS AMERICA, INC.
  3. Perform the "BSD Radar Calibration" procedure according to the GDS screen message.

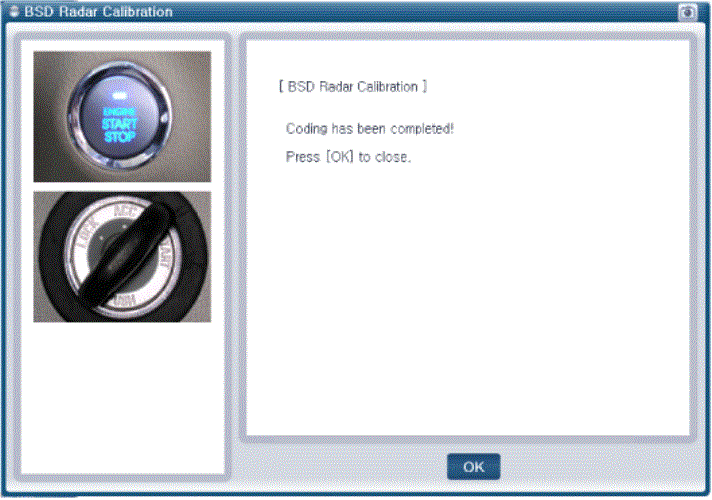

    Fig 2: GDS "BSD" Radar Calibration
    G00570501Courtesy of KIA MOTORS AMERICA, INC.
