Circuit Diagram

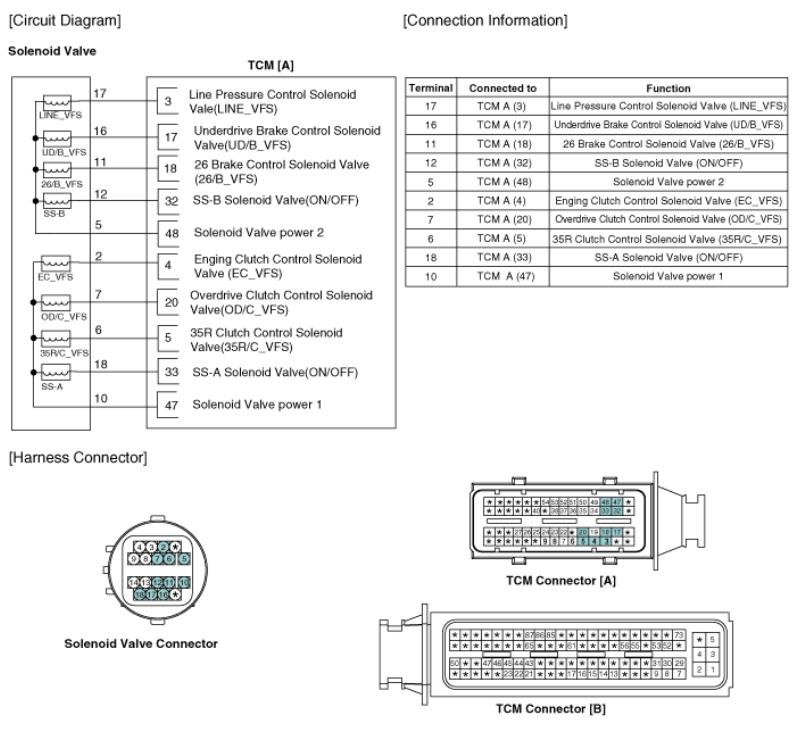

Fig 1: Line Pressure Control Solenoid Vale Circuit Diagram

G00570353

Courtesy of KIA MOTORS AMERICA, INC.
