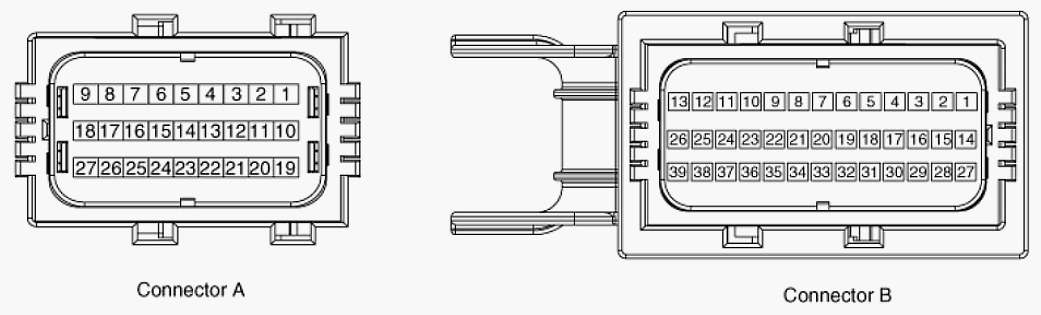

SRSCM Connector Terminal
WARNING: This page is about a different variant/trim than selected.
| Pin | Function (Connector A) | Pin | Function (Connector A) | ||
|---|---|---|---|---|---|
| 1 | P | Smart Junction Box (Fuse - A/BAG) | 1 | O | Passenger Side Impact Sensor (High) |
| 2 | - | - | 2 | L | Passenger Side Impact Sensor (Low) |
| 3 | - | - | 3 | G | Driver Side Impact Sensor (High) |
| 4 | G/O | Driver Front Impact Sensor (High) | 4 | B/O | Driver Side Impact Sensor (Low) |
| 5 | L | Driver Front Impact Sensor (Low) | 5 | L | Passenger Pressure Side Impact Sensor (High) |
| 6 | G | Passenger Front Impact Sensor (High) | 6 | O | Passenger Pressure Side Impact Sensor (Low) |
| 7 | L | Passenger Front Impact Sensor (Low) | 7 | L | Driver Pressure Side Impact Sensor (High) |
| 8 | Y | C-CAN (Low) | 8 | Y | Driver Pressure Side Impact Sensor (Low) |
| 9 | W | C-CAN (High) | 9 | B | Ground (GF05) |
| 10 | - | - | 10 | - | - |
| 11 | - | - | 11 | - | - |
| 12 | Y/O | Driver Air Bag (1st Stage - High) | 12 | P | Driver Seat Belt Buckle Switch (High) |
| 13 | L/B | Driver Air Bag (1st Stage - Low) | 13 | G/B | Driver Seat Belt Buckle Switch (Low) |
| 14 | Br/O | Passenger Air Bag (1st Stage - Low) | 14 | L/O | Driver Seat Belt Pretensioner (High) |
| 15 | Br | Passenger Air Bag(1st Stage - High) | 15 | Br | Driver Seat Belt Pretensioner (Low) |
| 16 | - | - | 16 | R | Passenger Seat Belt Pretensioner (Low) |
| 17 | - | - | 17 | B | Passenger Seat Belt Pretensioner (High) |
| 18 | - | - | 18 | B | Driver Curtain Air Bag (High) |
| 19 | - | - | 19 | R | Driver Curtain Air Bag (Low) |
| 20 | - | - | 20 | - | - |
| 21 | Br | Smart Junction Box(IPS Control Module) | 21 | - | - |
| 22 | O | Crash Signal Output : MTS Module, BCM, A/V & Navigation Head Unit |
22 | - | - |
| 23 | Br/O | Driver Air Bag (2nd Stage - Low) | 23 | - | - |
| 24 | Gr/O | Driver Air Bag (2nd Stage - High) | 24 | - | - |
| 25 | B | Passenger Air Bag(2nd Stage - High) | 25 | Y/B | Passenger Seat Belt Buckle Switch (High) |
| 26 | R | Passenger Air Bag (2nd Stage - Low) | 26 | W | Passenger Seat Belt Buckle Switch (Low) |
| 27 | L | Telltale Lamp (-) | 27 | P/B | Driver Side Air Bag (High) |
| 28 | O/B | Driver Side Air Bag (Low) | |||
| 29 | Gr | Passenger Side Air Bag (Low) | |||
| 30 | W/B | Passenger Side Air Bag (High) | |||
| 31 | G | Passenger Curtain Air Bag (High) | |||
| 32 | W | Passenger Curtain Air Bag (Low) | |||
| 33 | Y | Driver Anchor Pretensioner (Low) | |||
| 34 | Gr | Driver Anchor Pretensioner (High) | |||
| 35 | L | Passenger Anchor Pretensioner (High) | |||
| 36 | W | Passenger Anchor Pretensioner (Low) | |||
| 37 | - | - | |||
| 38 | G | Driver Seat Track Position Sensor (High) | |||
| 39 | B | Driver Seat Track Position Sensor (Low) | |||
