Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
  1. Remove the ignition key from the vehicle.
  2. Disconnect the battery negative cable and wait for at least three minutes before beginning work.
  3. Remove the floor console. (Refer to CONSOLE )
  4. Pull up the lock (C), of the SRSCM connector, the disconnect the connector (A and B).

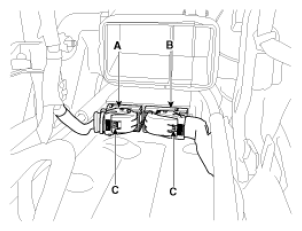

    Fig 1: Identifying Lock And SRSCM Connector
    G08308451Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the SRSCM mounting nuts from the SRSCM, then remove the SRSCM.
