Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Removal of the airbag must be performed according to the precautions/procedures described previously.
  • Before disconnecting the front impact sensor connector, disconnect the front airbag connector(s).
  • Do not turn the ignition switch ON and do not connect the battery cable while replacing the front impact sensor.
  1. Disconnect the battery negative cable, and wait for at least three minutes before beginning work.
  2. Remove the air duct (A).

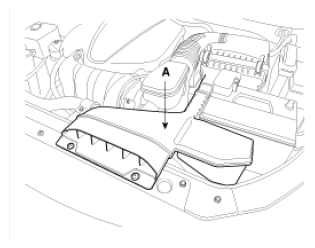

    Fig 1: Identifying Air Duct
    G08308468Courtesy of KIA MOTORS AMERICA, INC.
  3. Loosen the radiator upper hose bolt (A).
    Fig 2: Identifying Radiator Upper Hose Bolt
    G08308469Courtesy of KIA MOTORS AMERICA, INC.
  4. Remove the radiator mounting bracket (B).

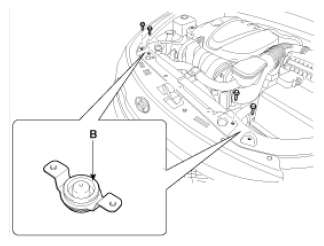

    Fig 3: Identifying Radiator Mounting Bracket
    G08308470Courtesy of KIA MOTORS AMERICA, INC.
  5. Disconnect the front impact sensor connector (A).

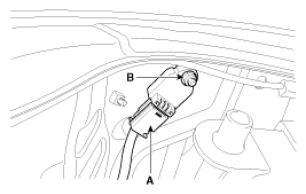

    Fig 4: Identifying Front Impact Sensor Connector
    G08308471Courtesy of KIA MOTORS AMERICA, INC.
  6. Loosen the front impact sensor mounting nut (B) and remove the front impact sensor.
