Repair Procedures: Removal

WARNING: This page is about a different variant/trim than selected.
WARNING: Be sure to read and follow the "General Safety Information and Caution" before doing any work related with the high voltage system. Failure to follow the safety instructions may result in serious electrical injuries. Refer to GENERAL SAFETY INFORMATION AND CAUTION .
  1. Shut off the High Voltage circuit (Refer to HIGH VOLTAGE SHUTOFF PROCEDURE .
  2. Remove the air cleaner assembly and duct (Refer to Removal .
  3. Disconnect the electric A/C compressor power cable (A).
    1. Pull the lever (B) in the direction of the arrow.
    2. Press the hook (C), and then pull the motor power cable connector.
  4. Remove the seal cover (D).

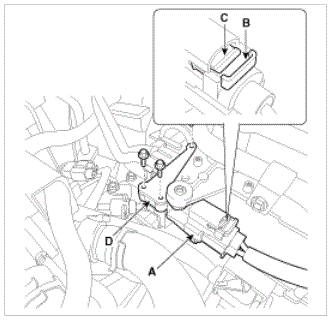

    Fig 1: A/C Compressor Power Cable, Lever, Hook & Cover
    G00548157Courtesy of KIA MOTORS AMERICA, INC.
  5. Remove the DC fuse by removing mounting bolts.

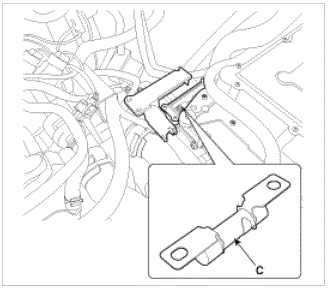

Fig 2: DC Fuse
G00548158Courtesy of KIA MOTORS AMERICA, INC.
