Repair procedures: Removal: Buzzer

WARNING: This page is about a different variant/trim than selected.
  1. Disconnect the negative (-) battery terminal.
  2. Remove the left side wheel guard.
  3. Remove the external buzzer (A) after disconnecting the connector.

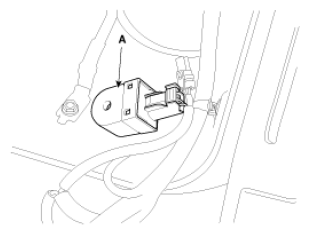

    Fig 1: Identifying External Buzzer
    G08309101Courtesy of KIA MOTORS AMERICA, INC.
