Repair Procedures: Inspection

WARNING: This page is about a different variant/trim than selected.
  1. Turn ignition switch OFF and disconnect the negative (-) battery cable.
  2. Remove the crash pad side switch assembly.

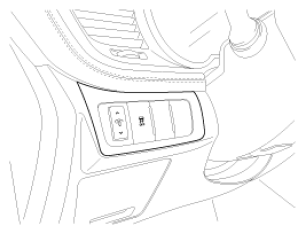

    Fig 1: Identifying Crash Pad Side Switch Assembly
    G08308651Courtesy of KIA MOTORS AMERICA, INC.
  3. Check the continuity between the switch terminals as the ESC OFF switch is engaged.
    Fig 2: ESC OFF Switch Terminal Continuity Chart
    G08308652Courtesy of KIA MOTORS AMERICA, INC.
