Circuit Diagram (1)

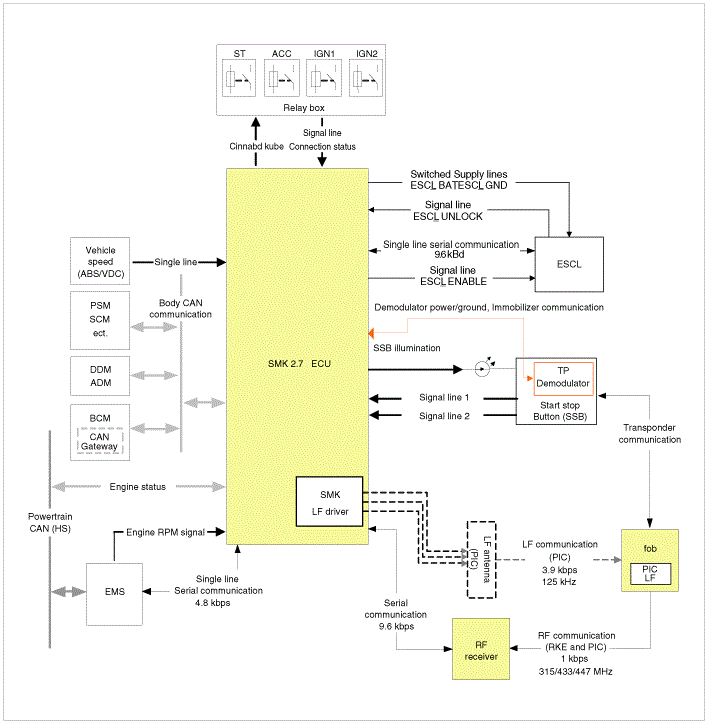

Fig 1: Button Engine Start System Circuit Diagram

G00549551

Courtesy of KIA MOTORS AMERICA, INC.
