Circuit Diagram

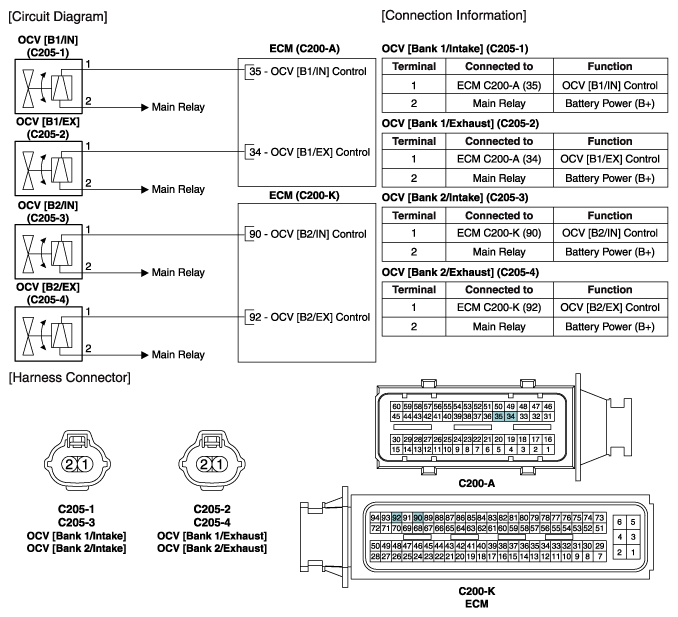

Fig 1: Oil Control Valve Circuit Diagram

G10713783

Courtesy of KIA MOTORS AMERICA, INC.
