Components And Components Location

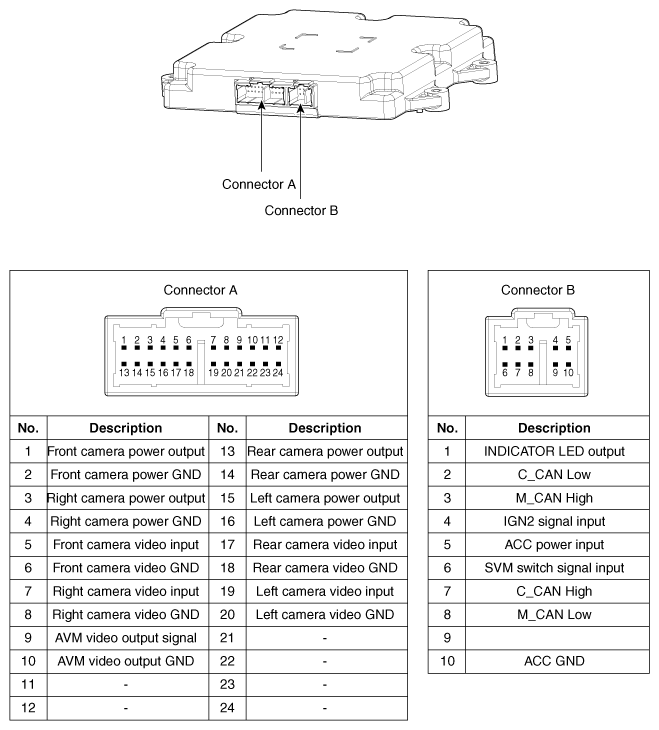

Fig 1: Identifying Surround View Monitoring Unit Connector Terminals

G10716181

Courtesy of KIA MOTORS AMERICA, INC.
