Repair Procedures: Installation

Install in the reverse order of removal.
Perform the procedures below After replacing the TCM.
1. Perform the oil pressure characteristics input procedure using the GDS.

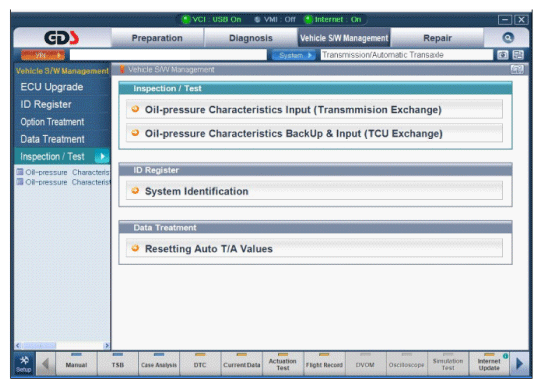

  Fig 1: Screen Display - Oil Pressure Characteristics Input Procedure
  Courtesy of KIA MOTORS AMERICA, INC.

  Information

  If you can not access the Internet, record the bar code data (oil pressure characteristics) on the automatic transmission case and then input it manually onto the GDS.

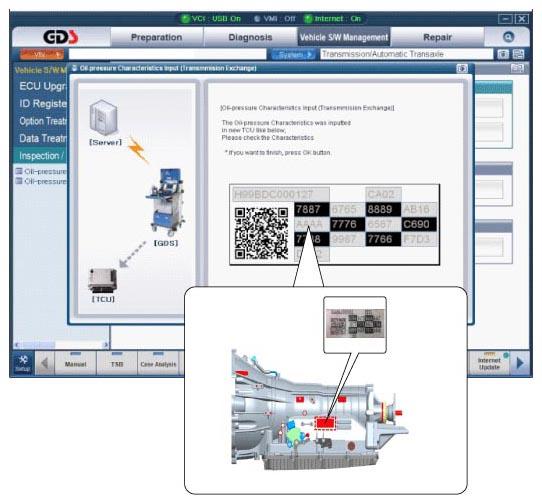

  Fig 2: Screen Display - Bar Code Data (Oil Pressure Characteristics)
  Courtesy of KIA MOTORS AMERICA, INC.
2. Perform the TCM adaptive values learning procedure using the GDS.
  (Refer to Automatic Transmission Control System - "REPAIR PROCEDURES ")
