Components And Components Location: Components

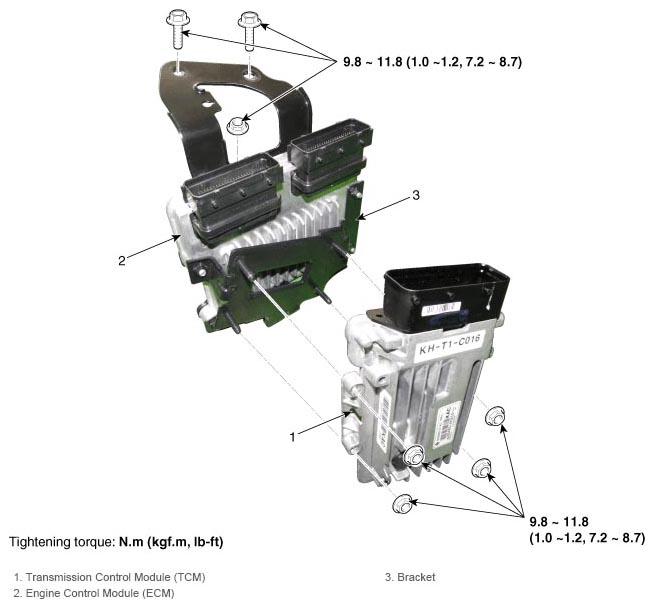

Fig 1: Identifying Transmission Control Module Related Components With Torque Specification

G10717352

Courtesy of KIA MOTORS AMERICA, INC.
