Home >> Kia >> 2015 >> K900 V6 >> Repair and Diagnosis >> Transmission >> Transmission Control Systems >> Automatic Transmission Control System - Shift By Cable - 3.8L >> Shift Cable >> Components And Components Location >> Components

Components And Components Location: Components

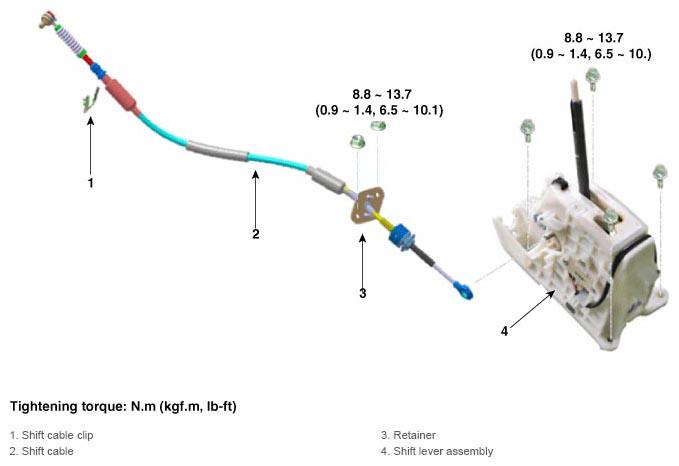

Fig 1: Identifying Shift Cable Related Components With Torque Specification

G10717399

Courtesy of KIA MOTORS AMERICA, INC.
