Circuit Diagram

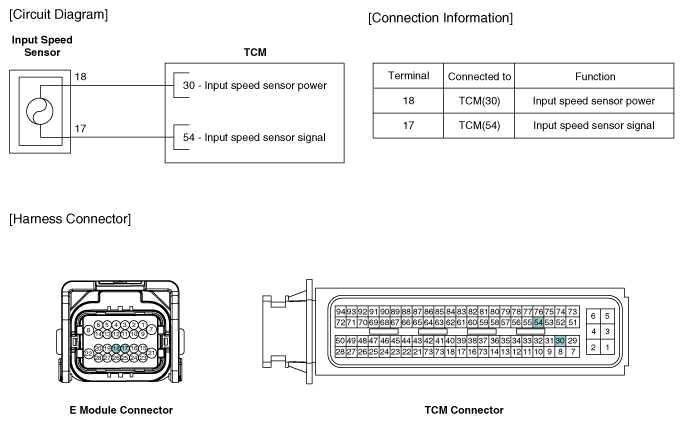

Fig 1: Input Speed Sensor Circuit Diagram

G10717364

Courtesy of KIA MOTORS AMERICA, INC.
