Components Location

[Vehicle Components]

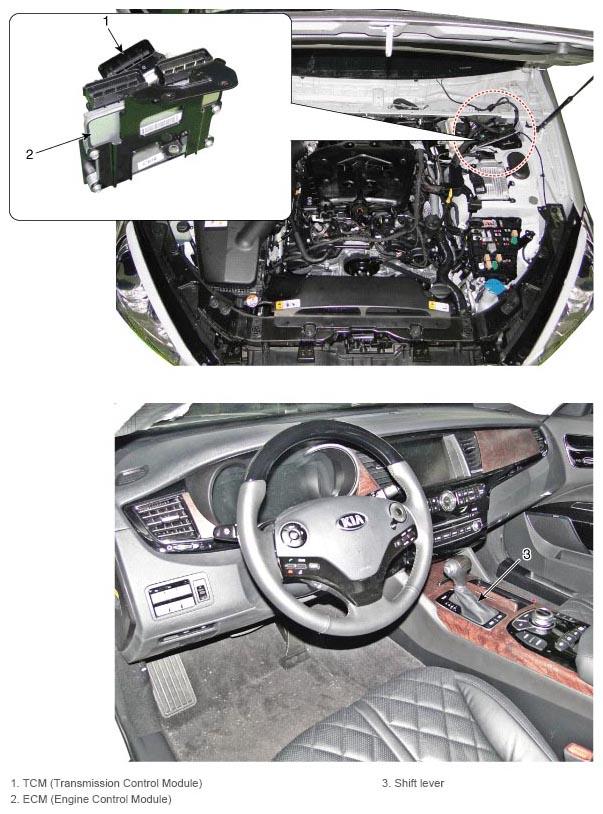

Fig 1: Identifying Automatic Transmission Control System Related Components - Vehicle
G10717349Courtesy of KIA MOTORS AMERICA, INC.

[Transmission Components]

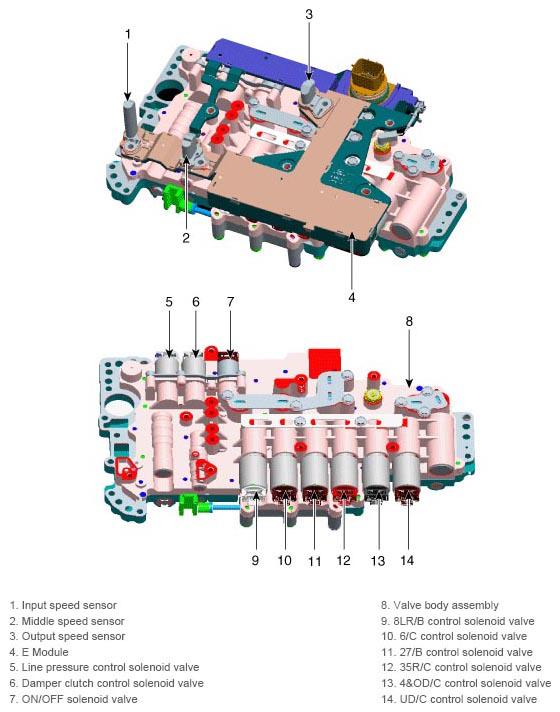

Fig 2: Identifying Automatic Transmission Control System Related Components - Transmission
G10717350Courtesy of KIA MOTORS AMERICA, INC.
