Assist Door Module (ADM)

The BCM can be diagnosed by using the GDS. The BCM communicates with the GDS which then displays inputs and outputs along with codes.
To diagnose the ADM function, select the vehicle model, BCM and ADM/ADM system.
Select "Current Data", if you want to check current data of ADM system. It provides input/output status of ADM.

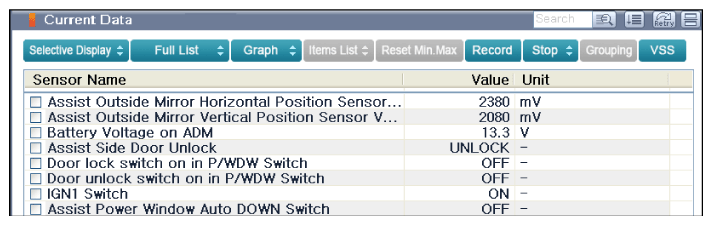

Fig 1: Display - ADM System Current Data Screen
Courtesy of KIA MOTORS AMERICA, INC.
Select "Actuation test", if you want to check the ADM module data operation forcefully.

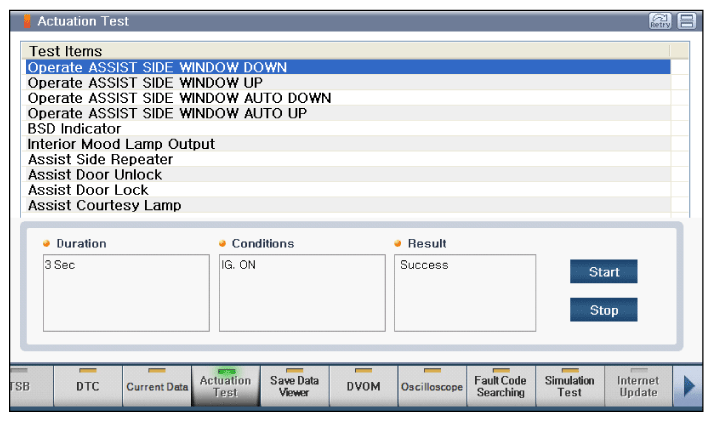

Fig 2: Display - ADM Module Actuation Test Screen
Courtesy of KIA MOTORS AMERICA, INC.
