Circuit Diagram

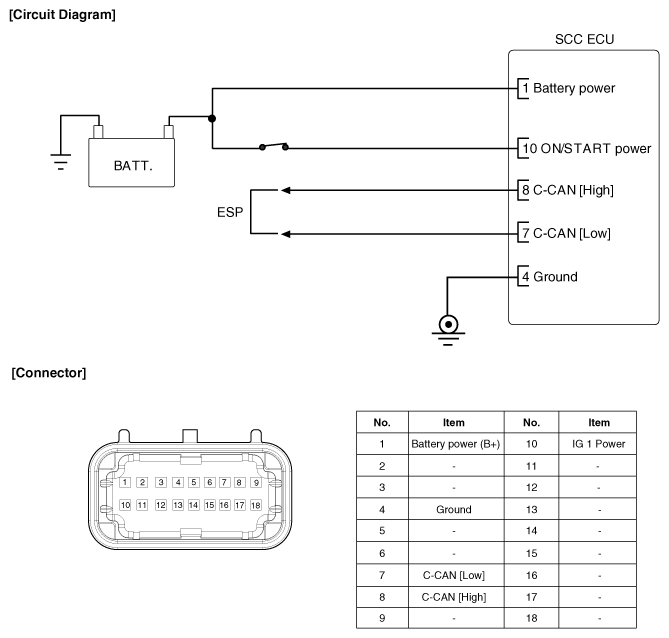

Fig 1: Smart Cruise Control Unit Circuit Diagram

G10713568

Courtesy of KIA MOTORS AMERICA, INC.
