Transmitter Code Registration (Using GDS)

Connect the DLC cable of GDS to the data link connector (16 pins) in driver side crash pad lower panel, turn the power on GDS.

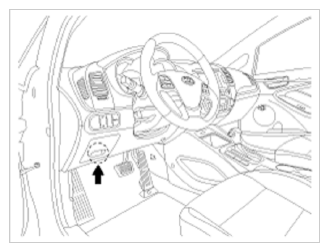

Fig 1: Data Link Connector
Courtesy of KIA MOTORS AMERICA, INC.
Select the vehicle model and then do "CODE SAVING"

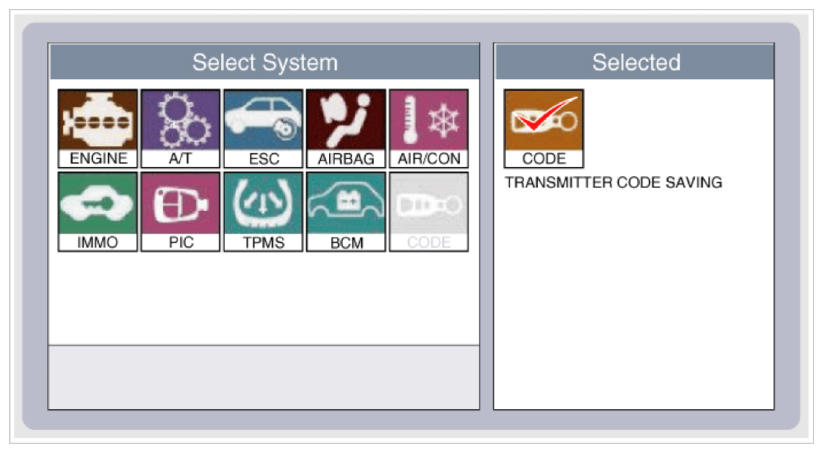

Fig 2: Scan Tool Display - Transmitter Code Saving Screen
Courtesy of KIA MOTORS AMERICA, INC.
After selecting "CODE SAVING" menu, button "ENTER" key, then the screen will be shown in the illustration.

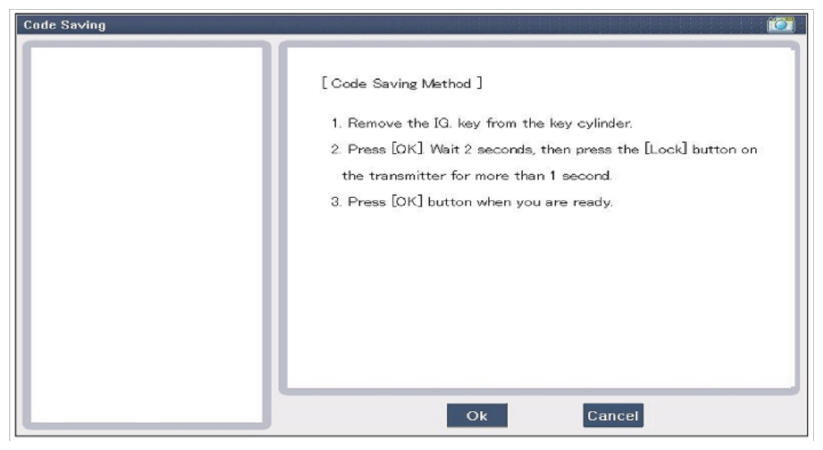

Fig 3: Scan Tool Display - Code Saving Menu Screen
Courtesy of KIA MOTORS AMERICA, INC.
After removing the ignition key from key cylinder, push "ENTER" key to proceed to the next mode for code saving. Follow steps 1 to 4 and then code saving is completed.

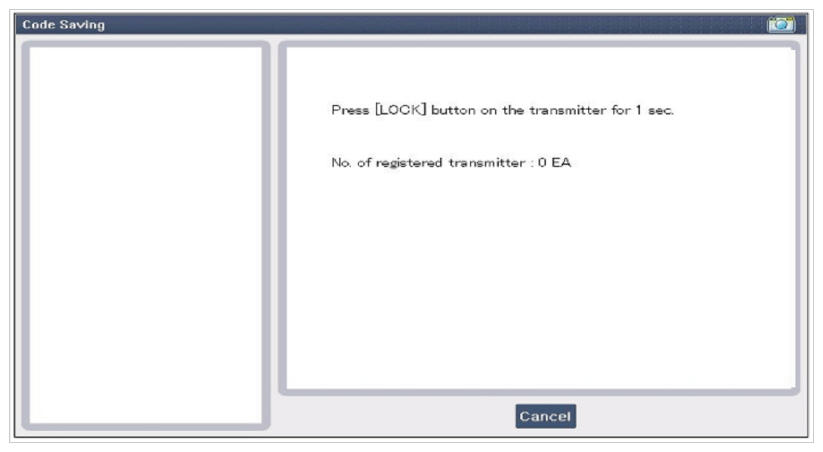

Fig 4: Scan Tool Display - Code Saving Screen
Courtesy of KIA MOTORS AMERICA, INC.

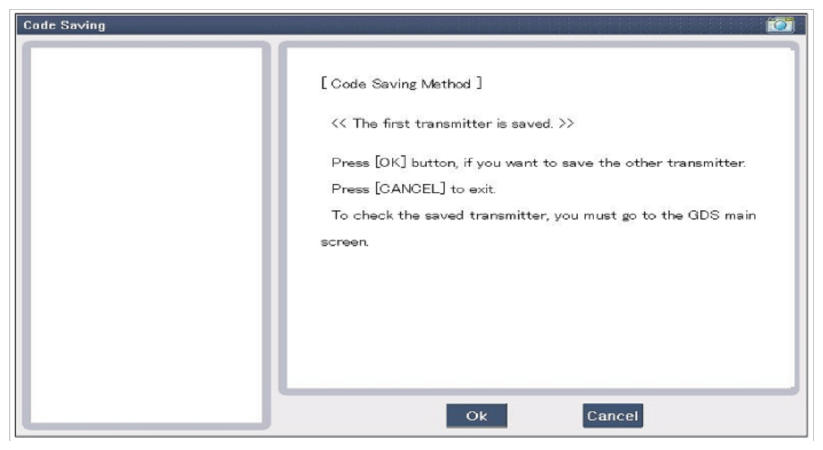

Fig 5: Scan Tool Display - Code Saving Method Screen (First Transmitter Saved)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 6: Scan Tool Display - Code Saving Method Lock Screen (First Transmitter Saved)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 7: Scan Tool Display - Code Saving Method Screen (Second Transmitter Saved)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 8: Scan Tool Display - Code Saving Method Lock Screen (Second Transmitter Saved)
Courtesy of KIA MOTORS AMERICA, INC.

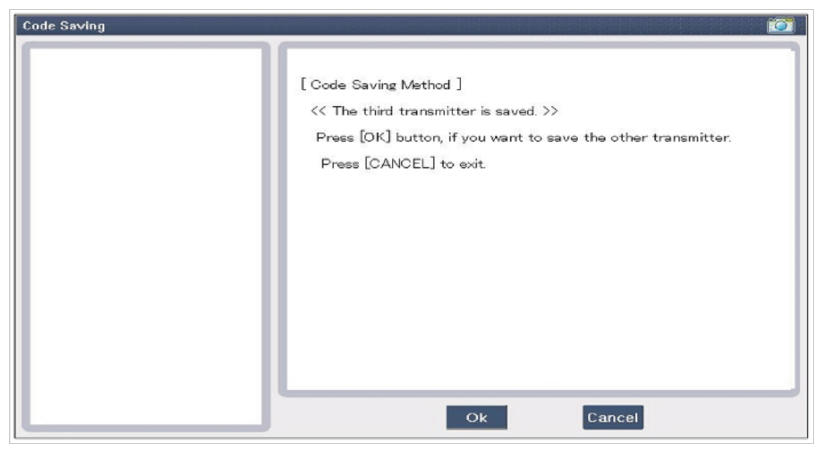

Fig 9: Scan Tool Display - Code Saving Method Screen (Third Transmitter Saved)
Courtesy of KIA MOTORS AMERICA, INC.

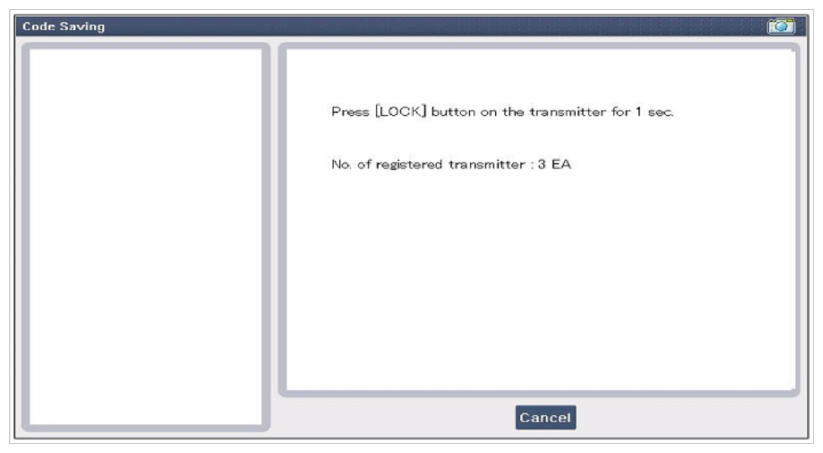

Fig 10: Scan Tool Display - Code Saving Method Lock Screen (Third Transmitter Saved)
Courtesy of KIA MOTORS AMERICA, INC.

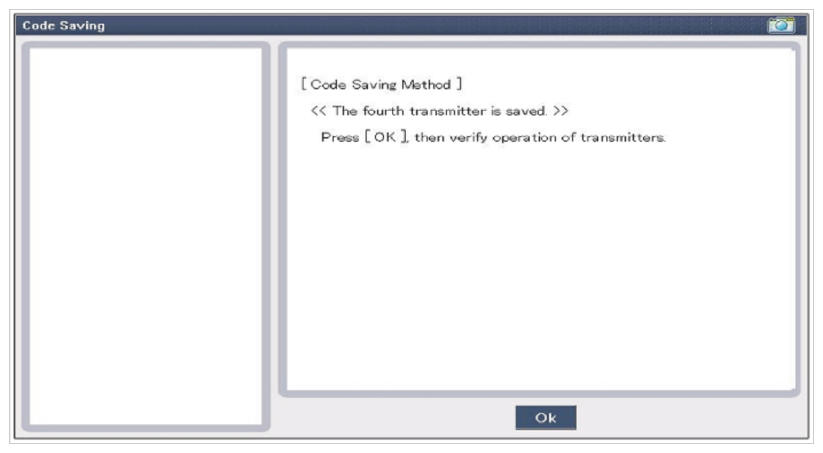

Fig 11: Scan Tool Display - Code Saving Method Screen (Fourth Transmitter Saved)
Courtesy of KIA MOTORS AMERICA, INC.

Fig 12: Scan Tool Display - Code Saving Method Lock Screen (Fourth Transmitter Saved)
Courtesy of KIA MOTORS AMERICA, INC.
