Release Residual Pressure In Fuel Line

CAUTION: There may be some residual pressure even after "RELEASE RESIDUAL PRESSURE IN FUEL LINE " work, so cover the hose connection with a shop towel to prevent residual fuel from spilling out before disconnecting any fuel connection.
  1. Turn the ignition switch OFF and disconnect the battery (-) cable.
  2. Remove the fuel pump fuse (A).

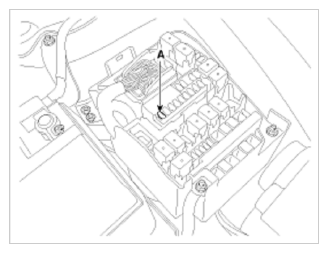

    Fig 1: Fuel Pump Fuse
    G09745684Courtesy of KIA MOTORS AMERICA, INC.
  3. Connect the battery (-) cable.
  4. Start the engine and let idle, and then turn the ignition switch OFF after the engine has stopped on its own.
  5. Disconnect the battery (-) cable, and then install the fuel pump fuse.
  6. Connect the battery (-) cable.
  7. Delete the Diagnostic Trouble Code (DTC) related the fuel pump fuse with the GDS.
    CAUTION: When removing the fuel pump fuse, a Diagnostic Trouble Code (DTC) may occur. Delete the code with the GDS after completion of "RELEASE RESIDUAL PRESSURE IN FUEL LINE " work.
