OEM Connector End Views (Main Harness) -- 1.8L
>>
Connector End Views
>>
Clock Spring (Steering Wheel Remote Control Switch) Connector End View (M01-R)
Clock Spring (Steering Wheel Remote Control Switch) Connector End View (M01-R)

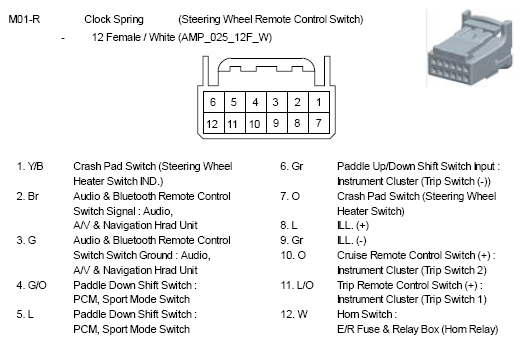

Fig 1: Clock Spring (Steering Wheel Remote Control Switch) Connector End View (M01-R)
