System Inspection

  1. Check Camshaft and crankshaft alignment.

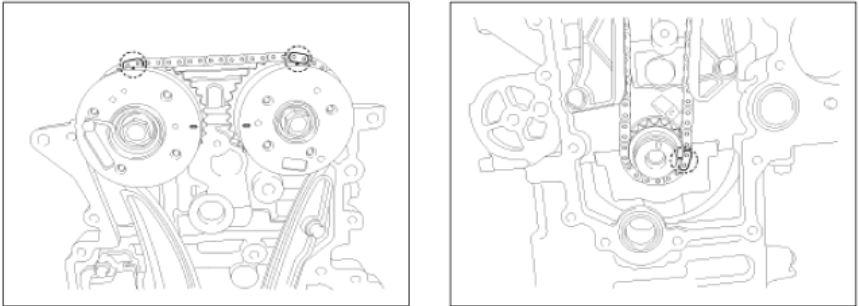

    Fig 1: Alignment Of Camshafts And Crankshaft
    G00570189Courtesy of KIA MOTORS AMERICA, INC.
  2. Have any problems been found?

    YES

    NO
