Repair Procedures: Replacement

(5 Door)

CAUTION:

When prying with a flat-tip screwdriver, wrap it with protective tape, and apply protective tape around the related parts, to prevent damage.
Put on gloves to protect your hands.

NOTE:

Remove the tail gate upper trim.
(Refer to TAIL GATE TRIM )
Disconnect the washer nozzle hose (A) and high mounted stop lamp connector (B).

Fig 1: Washer Nozzle Hose And High Mounted Stop Lamp Connector
Courtesy of KIA MOTORS AMERICA, INC.

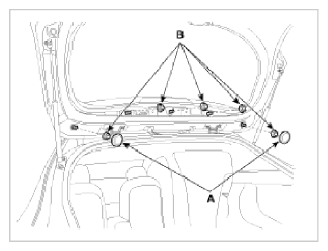

Remove the caps (A).
Loosen the rear spoiler mounting nuts (B).
Tightening Torque:

5.9 ~ 6.4 N.m (0.6 ~ 0.65 kgf.m, 4.3 ~ 4.7 lb-ft)

Fig 2: Rear Spoiler Mounting Nuts And Caps
Courtesy of KIA MOTORS AMERICA, INC.
Remove the rear spoiler (A).

Fig 3: Removing Rear Spoiler
Courtesy of KIA MOTORS AMERICA, INC.
Install in the reverse order of removal.
Information
- Make sure the connector is connected properly.
- Replace any damaged clips.
