Repair procedures: Removal

  1. Remove the negative (-) battery terminal.
  2. Remove the driver seat in the car.

    (Refer to "FRONT SEAT ")

  3. Remove the IMS module (A) after loosening 3 screws in the bottom of seat.

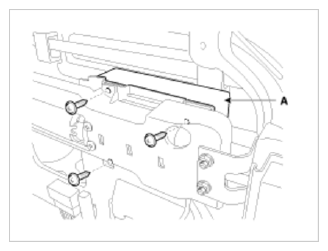

    Fig 1: Identifying IMS Module
    G09752692Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the IMS module connector (A) and then remove the IMS module (B).

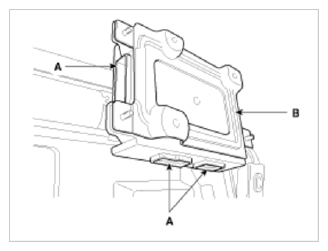

    Fig 2: Identifying IMS Module Connector And IMS Module
    G09752693Courtesy of KIA MOTORS AMERICA, INC.
