Monitor GDS Data

  1. Ignition "OFF", connect GDS.
  2. Ignition "ON" & Engine "OFF", select "Current Data" mode.
  3. Monitor the "Battery Voltage" parameter on the GDS.

    Specification:  Approx. 12.5V

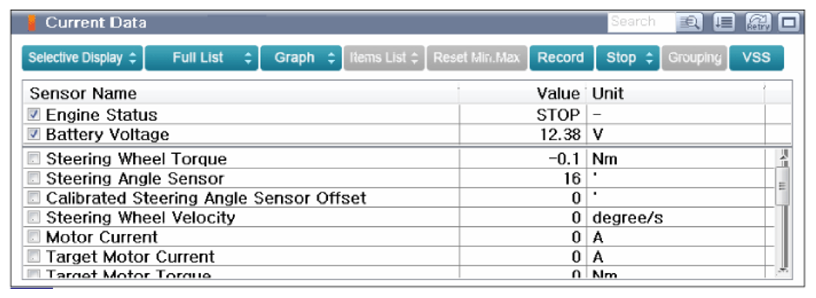

    Fig 1: Ignition "On" & Engine "Off" Normal Data
    G09775967Courtesy of KIA MOTORS AMERICA, INC.
  4. Ignition "ON" & Engine "ON", select "Current Data" mode.
  5. Monitor the "Battery Voltage" parameter on the GDS.

    Specification:  Approx. 14.5V

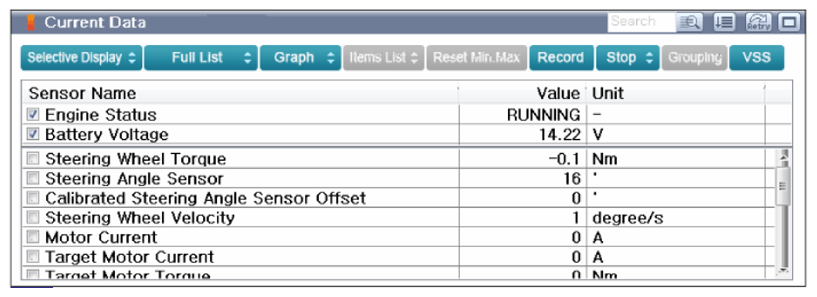

    Fig 2: Ignition "On" & Engine "On" Normal Data
    G09775968Courtesy of KIA MOTORS AMERICA, INC.
  6. Is parameter within specifications?

    YES

    • This may be a intermittent problem caused by poor contact of component or the EPS ECU.
    • Thoroughly check for looseness, poor connection, bent, corrosion, contamination, deformation or damage of connector.
    • Repair or replace as necessary and then, go to "VERIFICATION OF VEHICLE REPAIR " procedure.

    NO
