Monitor GDS Data

  1. Ignition "OFF".
  2. Connect GDS to Data Link Connector (DLC).
  3. Shift gear lever to "P", "R", "N", "D" and "Sports".
  4. Monitor "Shift Lever Switch" and "Current Gear" parameters in "Current Data"  with GDS.

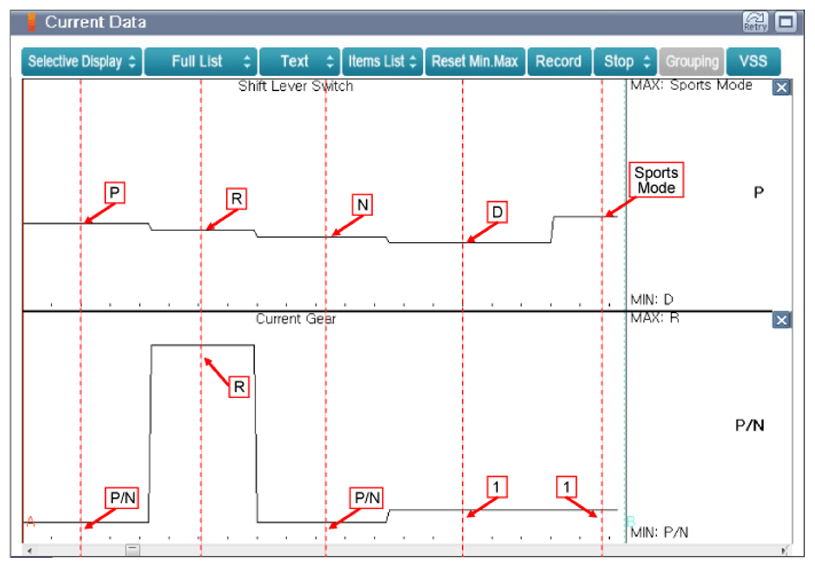

    Specification:  Refer to Fig 1 below

    Fig 1: Display - Shift Lever Switch Parameters (Shifting Gear Lever)
    G09780347Courtesy of KIA MOTORS AMERICA, INC.
  5. Is displayed parameter within specification?

    YES

    • Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
    • Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
