MDPS Circuit Diagram: Notes

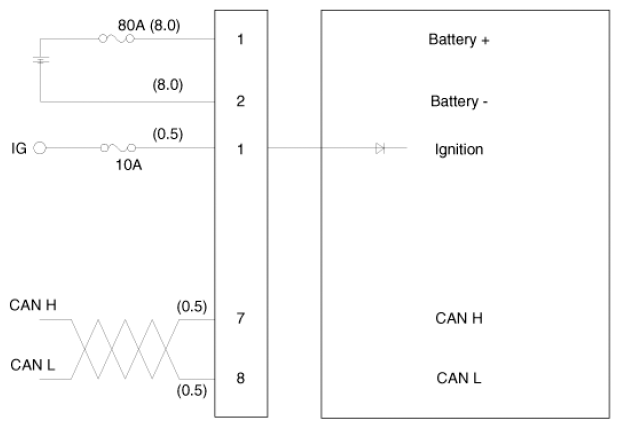

Fig 1: MDPS Circuit Diagram

G09773405

Courtesy of KIA MOTORS AMERICA, INC.
