Repair procedures: Replacement

  1. Disconnect the negative (-) battery terminal.
  2. Remove the crash pad lower panel.

    (Refer to "CRASH PAD LOWER PANEL ")

  3. Remove the driver's side shower duct (A) after loosening the screw.

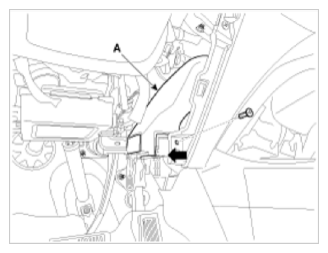

    Fig 1: Removing Driver's Side Shower Duct
    G09778735Courtesy of KIA MOTORS AMERICA, INC.
  4. Disconnect the connector (A) and then remove the temperature control actuator (B) after loosening the mounting screws.

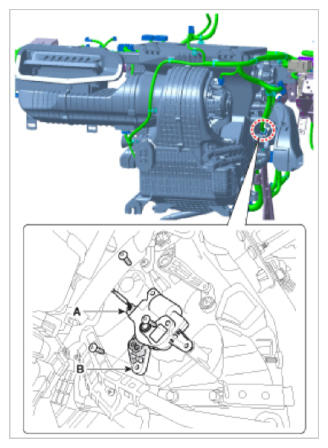

    Fig 2: Temperature Control Actuator And Connector
    G09778736Courtesy of KIA MOTORS AMERICA, INC.
  5. Install in the reverse order of removal.
