Components and Components Location: Components

[LH]

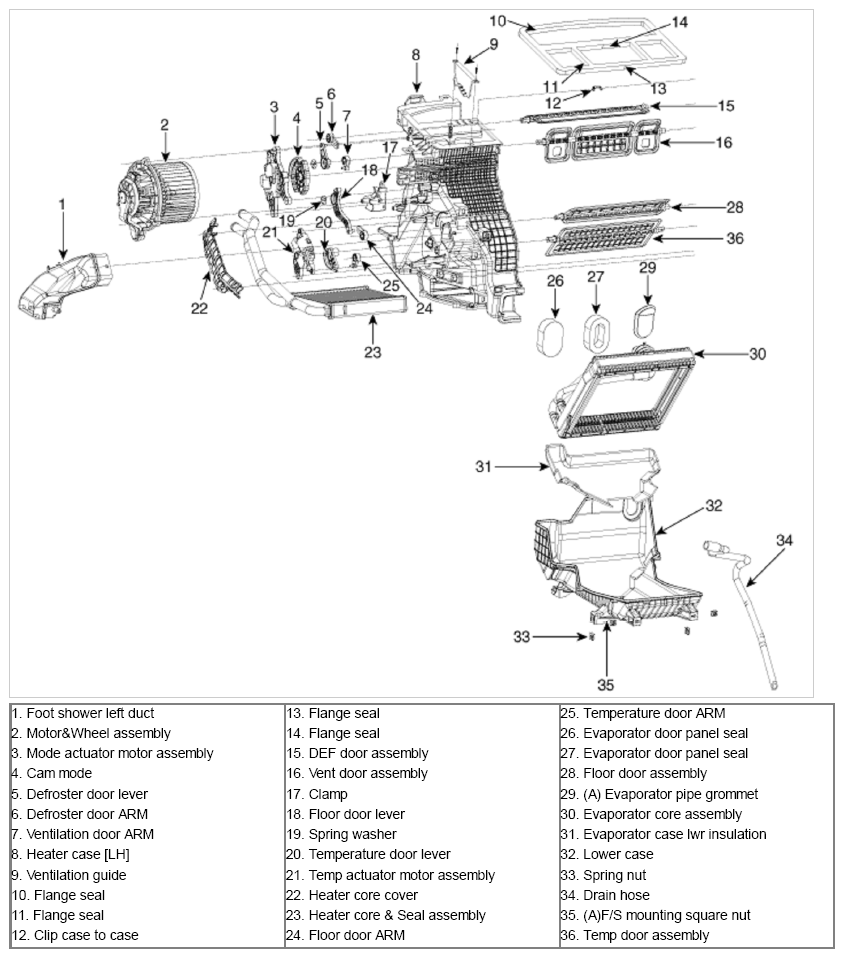

Fig 1: Exploded View Of Heater Unit (LH)
G09778699Courtesy of KIA MOTORS AMERICA, INC.

[RH]

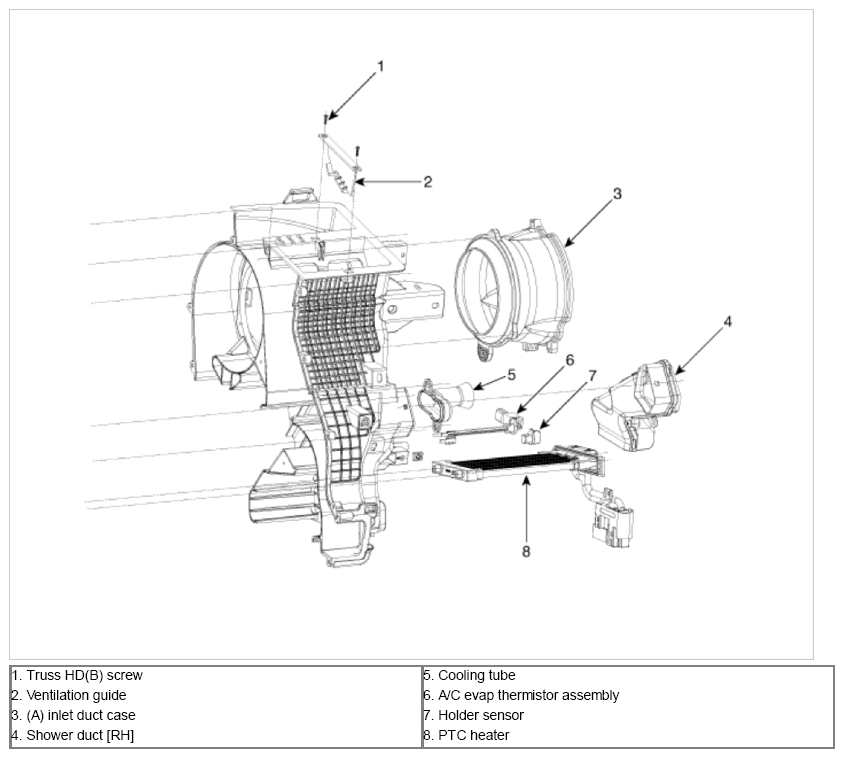

Fig 2: Exploded View Of Heater Unit (RH)
G09778700Courtesy of KIA MOTORS AMERICA, INC.
