Components and Components Location: Components

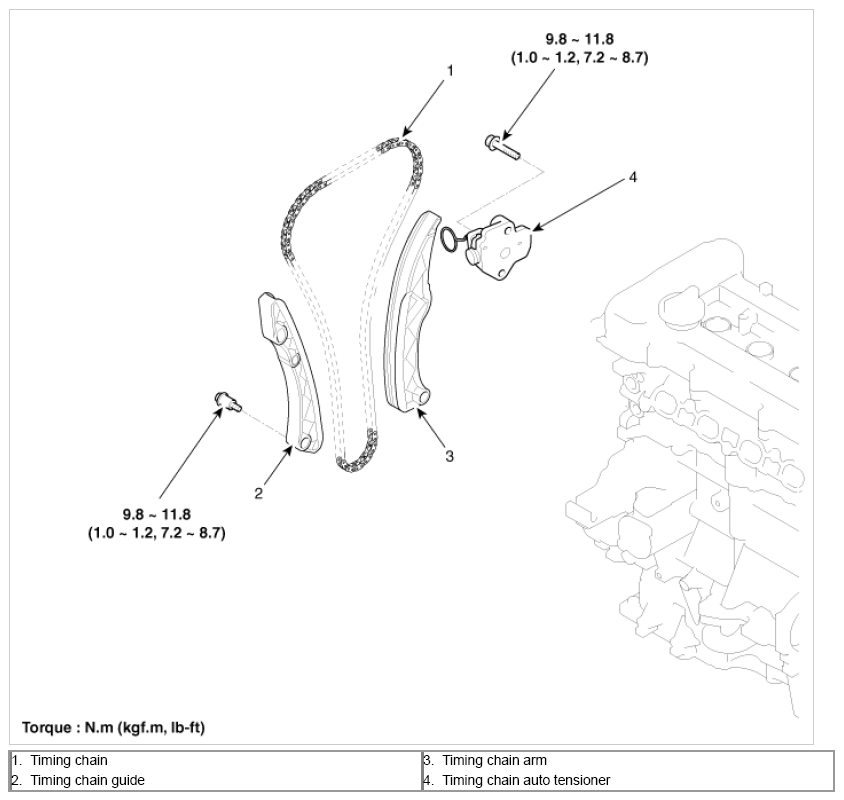

Fig 1: Timing Chain Components With Torque Specifications

G09772822

Courtesy of KIA MOTORS AMERICA, INC.
