Home >> Kia >> 2014 >> Soul Base, Automatic Trans >> Repair and Diagnosis >> Engine Mechanical >> Mechanical >> Timing System - 1.6L >> Components and Components Location >> Notes

Components and Components Location: Notes

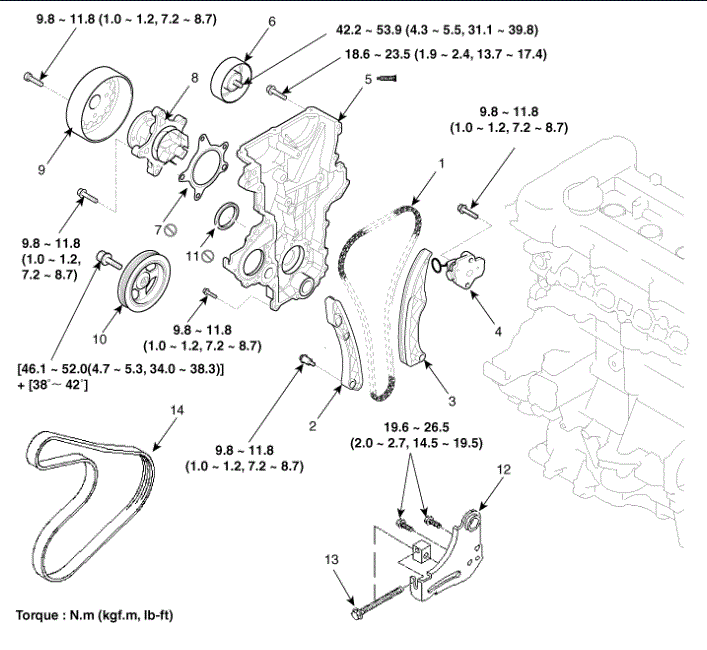

Fig 1: Timing System Replacement Components With Torque Specifications

G00619900
