Intake Manifold: Components

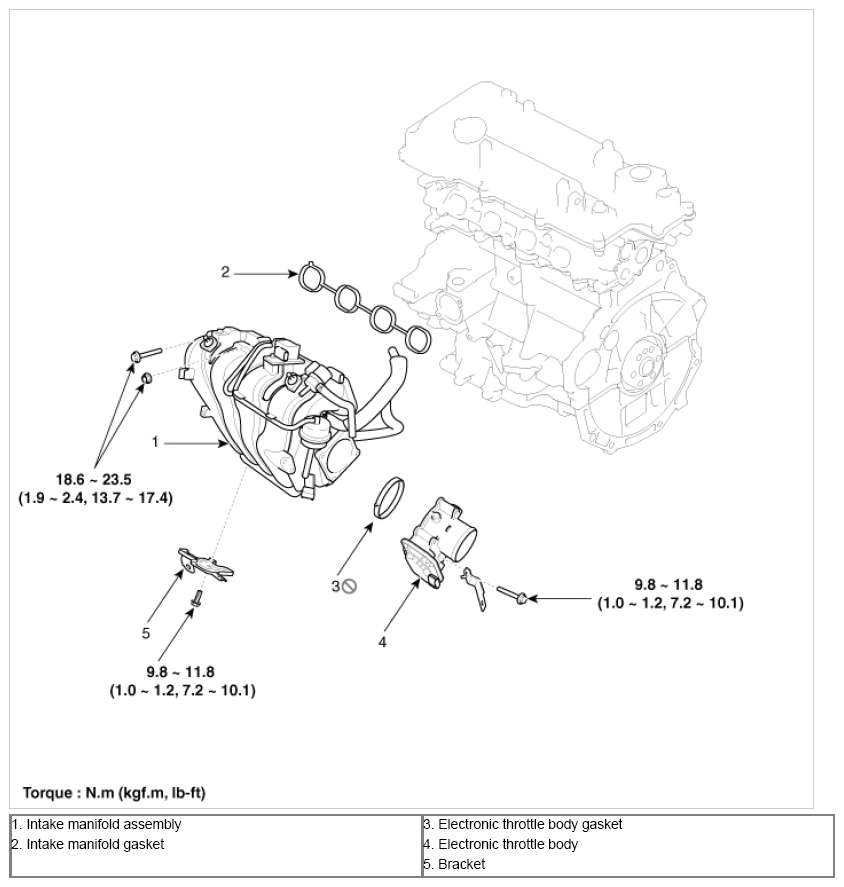

Fig 1: Intake Manifold Components With Torque Specifications

G09777609

Courtesy of KIA MOTORS AMERICA, INC.
