Monitor GDS Data

DTC Status Check
1. Connect GDS to Data Link Connector (DLC).
2. Ignition "ON".
3. Monitor "Diagnostic Trouble Codes (DTC)" with GDS.

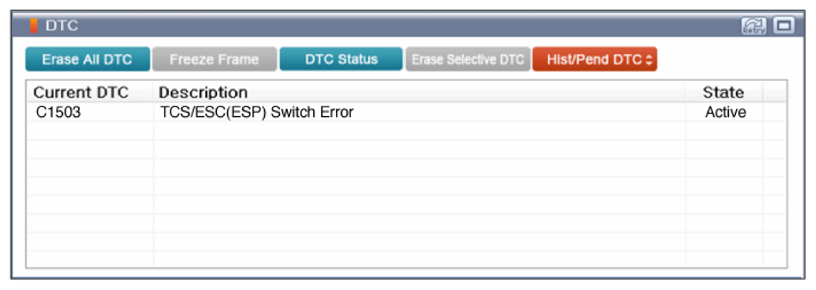

  Fig 1: DTC Status Screen
  Courtesy of KIA MOTORS AMERICA, INC.
4. Is DTC status displayed as Present?
  YES
  - Go to "Current Data Inspection" procedure.
  NO
  - Go to "VERIFICATION OF VEHICLE REPAIR " procedure.
Current Data Inspection
1. Connect GDS to Data Link Connector (DLC).
2. Ignition "ON".
3. Operate TCS/ESC (ESP) Switch.
4. Monitor "ESP ON/OFF Switch (ESP Only)" and "TCS/ESC (ESP) OFF Warning Lamp (ESP Only)" parameters in "Current Data" with GDS.
  Specification: Switch Operated "ON"/Switch Not Operated "OFF" (Refer to Fig 2)

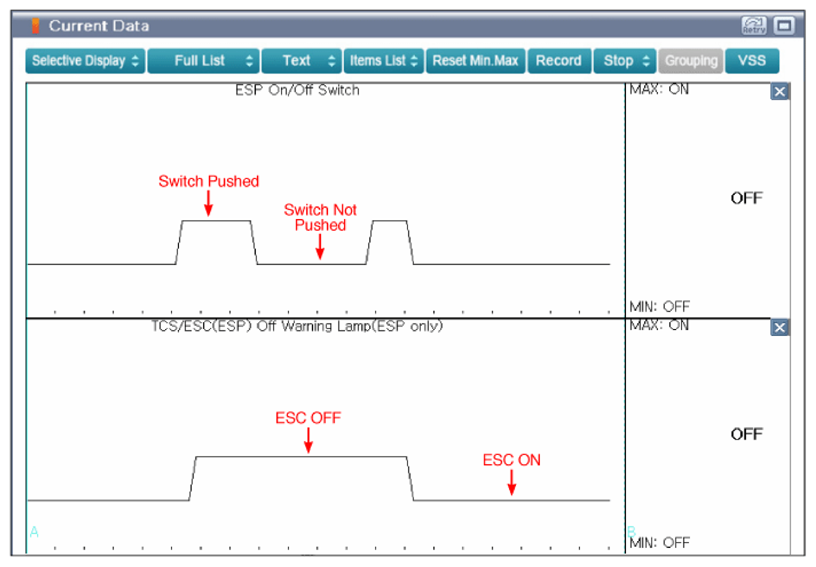

  Fig 2: TCS/ESC(ESP) Waveforms
  Courtesy of KIA MOTORS AMERICA, INC.
5. Is parameter displayed within specification?
  YES
  - Fault might be intermittent and caused either by poor contact in connectors or wiring harness, or it has been repaired and control module memory is not cleared yet. Thoroughly check terminal of battery, all connectors (and connections) for looseness, bending, corrosion, contamination, deterioration, and/or damage.
  - Repair or replace as necessary and then go to "VERIFICATION OF VEHICLE REPAIR " procedure.
  NO
  - Go to "WIRING INSPECTION " procedure.
