Monitor GDS Data

  1. Connect GDS to DLC (Data Link Cable).
  2. Warm up the engine to normal operating temperature.
  3. Check the "Current Data"  with GDS.

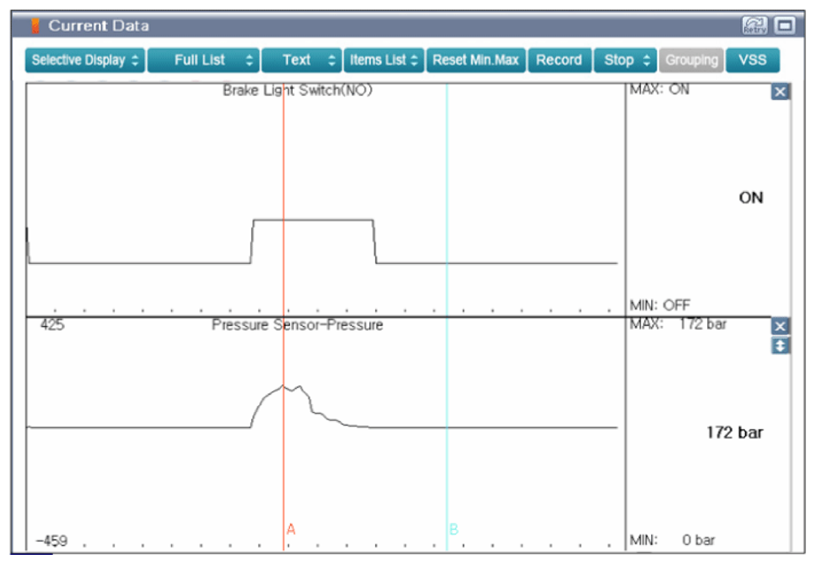

    Fig 1: Normal Pressure Sensor Waveform
    G09779825Courtesy of KIA MOTORS AMERICA, INC.
  4. Are the parameters displayed normally?

    YES

    NO
