Exterior Bumper Antenna

  1. Disconnect the negative(-) battery terminal.
  2. Remove the rear bumper cover.

    (Refer to "REAR BUMPER COVER ")

  3. Disconnect the connector (A), then remove the rear bumper antenna (B) with loosening the mounting screws.

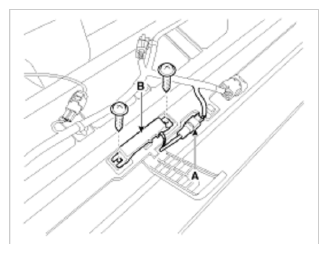

    Fig 1: Identifying Rear Bumper Antenna And Connector
    G09778503Courtesy of KIA MOTORS AMERICA, INC.
