Home >> Kia >> 2014 >> Soul ! >> Repair and Diagnosis >> Transmission >> Automatic Trans >> Engine & Transaxle Assembly - 2.0L >> Engine Room Under Cover >> Components and Components Location >> Components

Components and Components Location: Components

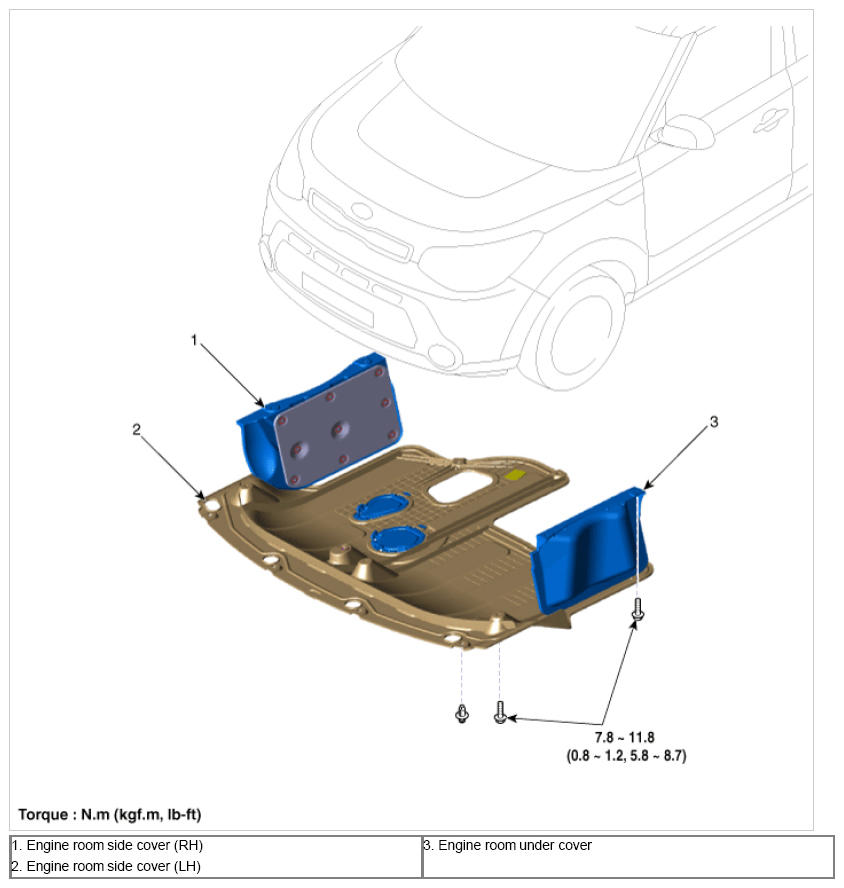

Fig 1: Engine Room Under Cover Components With Torque Specifications

G09778935

Courtesy of KIA MOTORS AMERICA, INC.
