Components and Components Location: Components

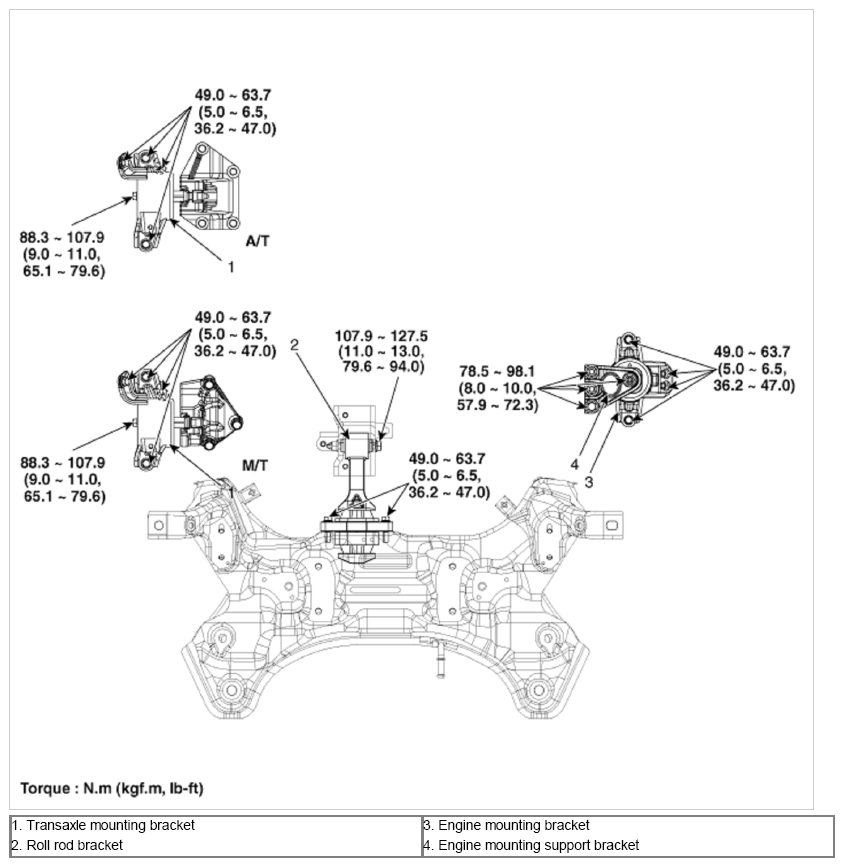

Fig 1: Engine Mounting Components With Torque Specification

G09778939

Courtesy of KIA MOTORS AMERICA, INC.
