System Inspection

Resetting Adaptive Values
1. Connect GDS to DLC (Data Link Cable).
2. IG "ON" & ENG "OFF".
3. Select the "Vehicle S/W Management" about related DTC with GDS.

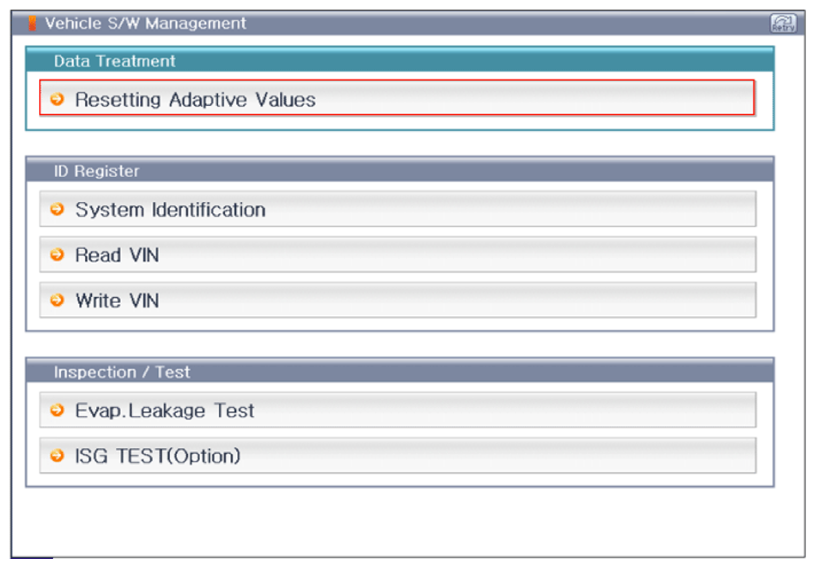

  Fig 1: Display - Select Resetting Adaptive Values For Resetting TPS Values Screen
  Courtesy of KIA MOTORS AMERICA, INC.

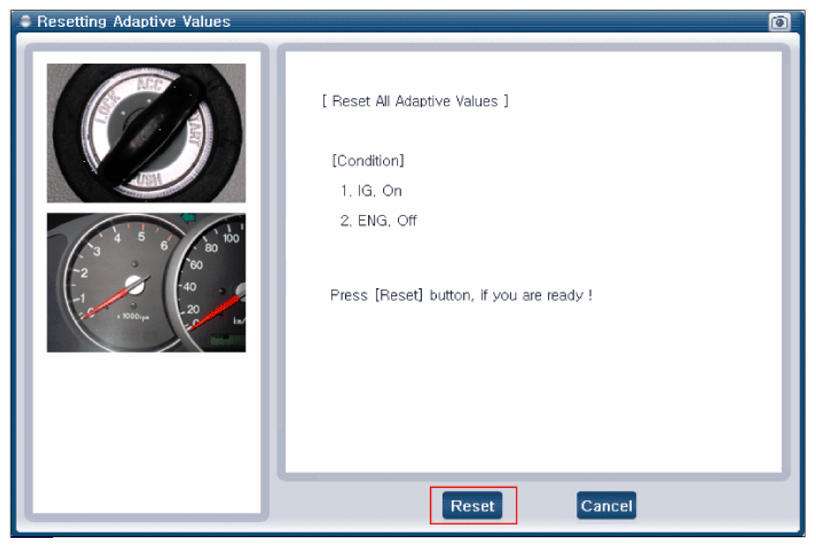

  Fig 2: Display - Press Reset Button To Progress For Next Procedure Screen
  Courtesy of KIA MOTORS AMERICA, INC.

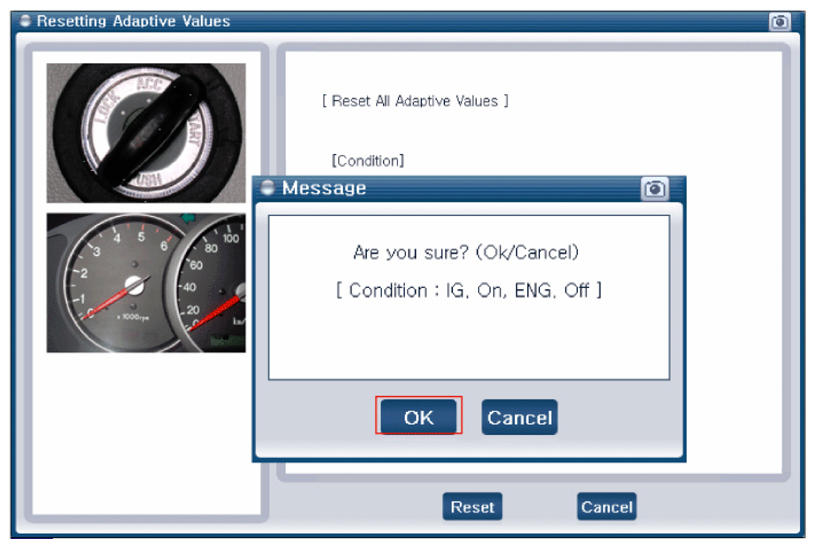

  Fig 3: Display - Press OK Button (IG ON, ENG OFF) Screen
  Courtesy of KIA MOTORS AMERICA, INC.

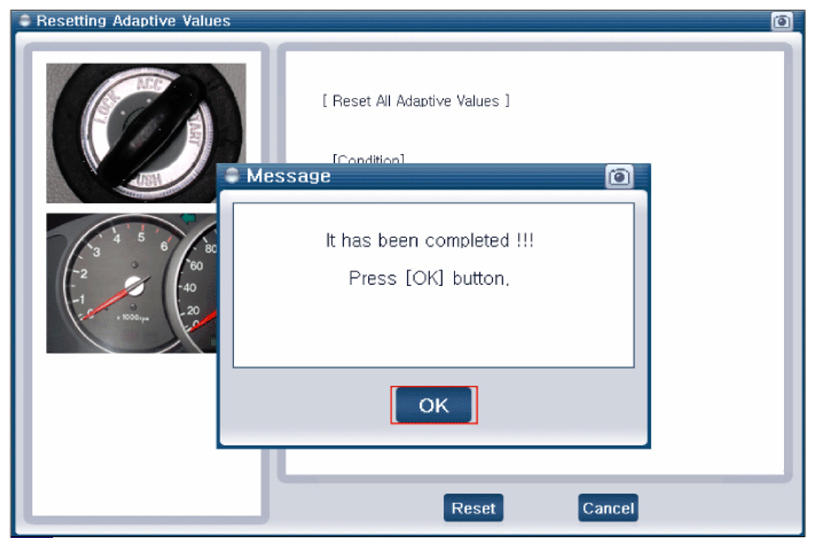

  Fig 4: Display - Test Completed Screen
  Courtesy of KIA MOTORS AMERICA, INC.
4. When the "Resetting Adaptive Values" has been finished perfectly, press "OK" button and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
