Monitor GDS Data

  1. Connect GDS to DLC (Data Link Cable).
  2. Warm up the engine to normal operating temperature.
  3. Check the "Current Data"  about related DTC with GDS.

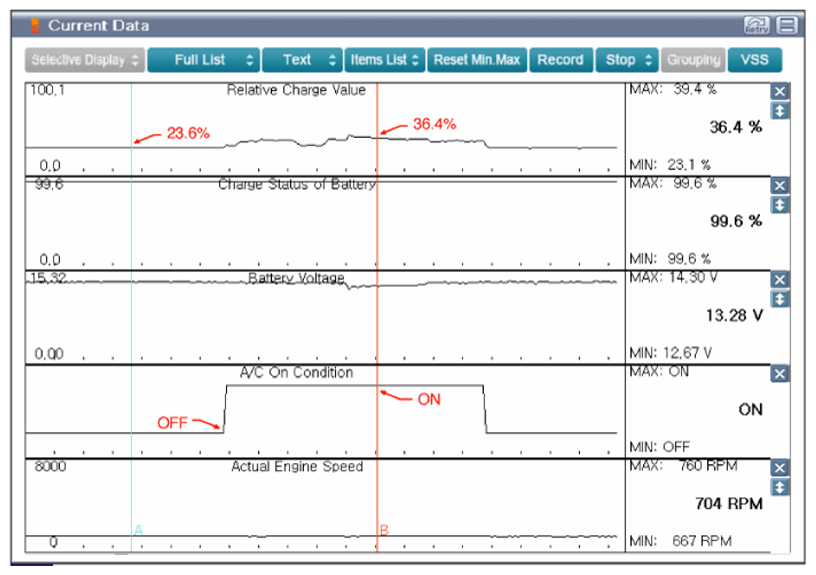

    Fig 1: Display - Engine Idle After Warm Up - Aircon ON Screen
    G09781436Courtesy of KIA MOTORS AMERICA, INC.
    1. Engine Idle after Warm Up
    2. Aircon "On"

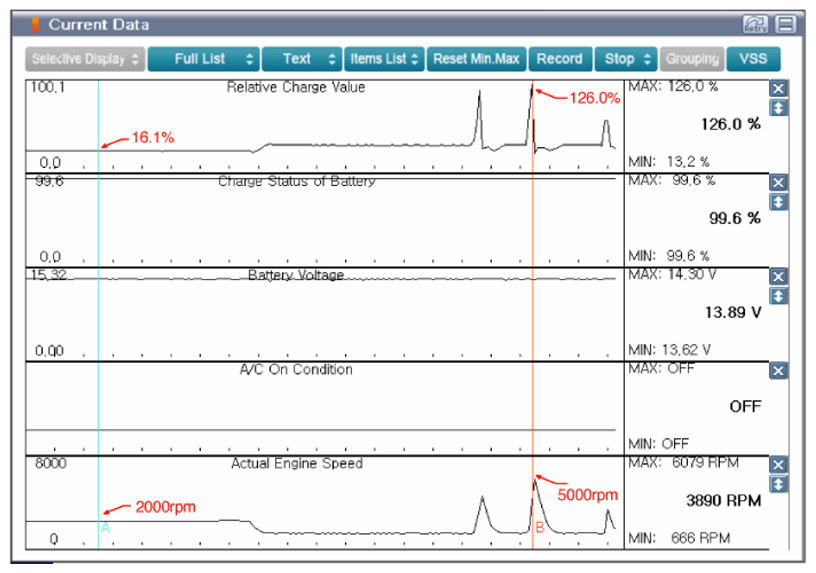

    Fig 2: Display - Approx. 2000RPM At Acceleration Screen
    G09781437Courtesy of KIA MOTORS AMERICA, INC.
    1. Approx. 2000RPM
    2. At Acceleration
  4. Are the parameters displayed correctly?

    YES

    • Fault is intermittent caused by poor contact in the sensor's and/or PCM's connector or was repaired and PCM memory was not cleared. Thoroughly check connectors for looseness, poor connection, bending, corrosion, contamination, deterioration, or damage. Repair or replace as necessary and go to "VERIFICATION OF VEHICLE REPAIR " procedure.
